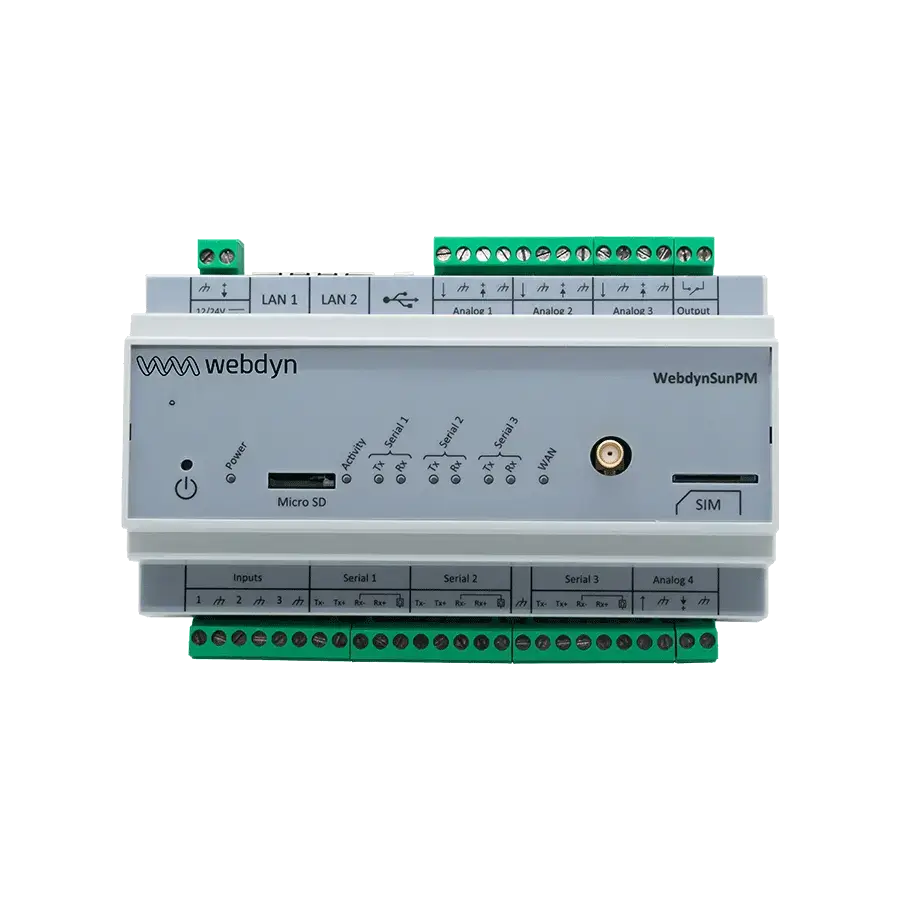

WebdynSunPM
Gateway for solar plants with Power Management
The WebdynSunPM concentrator is used to monitor and control photovoltaic installations by collecting, analyzing and modifying the equipment parameters. Define your scenarios to modulate the power injected to the grid, optimize energy storage or manage your own consumption. Installation and programming is simple and user-friendly using the embedded web server and the configuration wizard, and it can be done remotely. It is compatible with most platforms. WebdynSunPM operates sending the data to one or two servers, or backing it up locally on a micro SD card. Its Power Management feature allows offloading, autoconsumption, storage, as well as other actions.

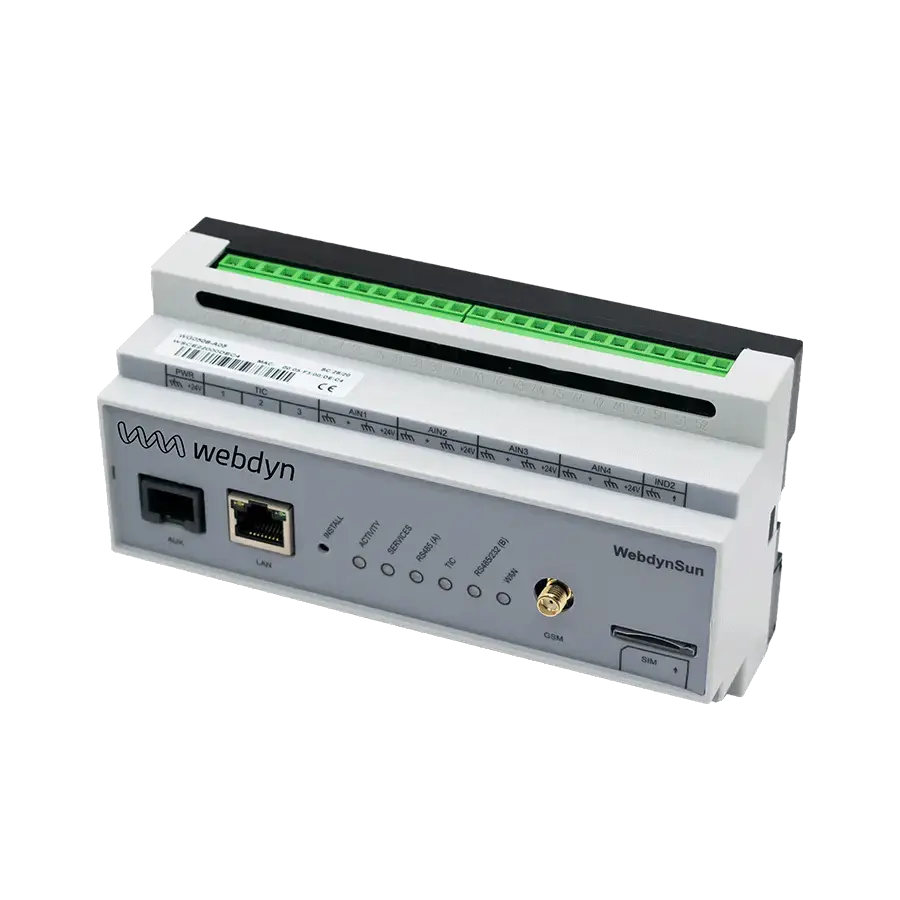

WebdynSun
Gateway for Solar Plants .
The WebdynSun gateway is used to monitor and collect data from solar plants. In a single device, this gateway gathers all the indicators of the inverters, the electricity meters and the environmental sensors (intensity of sunlight, temperature, wind speed, etc.). The device formats the data in CSV and sends it periodically via mobile networks, Ethernet or telephone network (STN) to a server. Installation is simple and user-friendly using the embedded web server, and it can be done remotely. It allows to operate local actions controlling files from the central server.

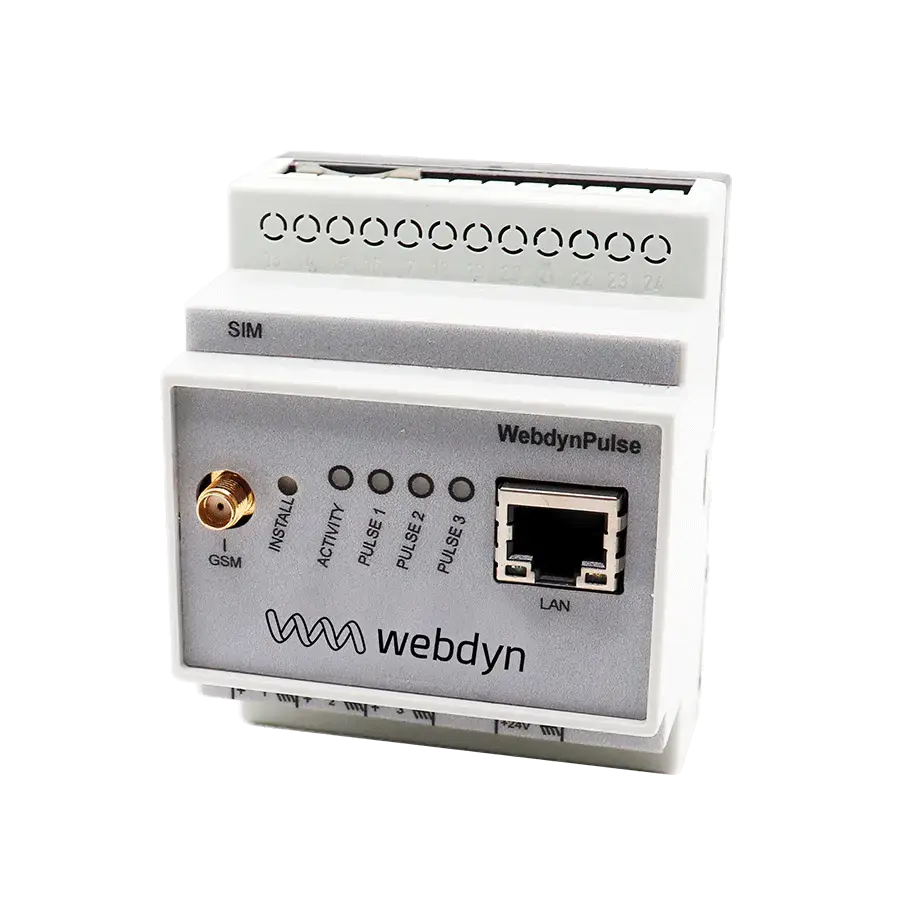

WebdynPulse
Gateway for the monitoring of three meters.
The WebdynPulse gateway is used to share all the data from three meters with a pulse output in a single box. This gateway’s main function is to collect data (indexes) from the three meters. Each of the three entries can be configured either in dry contact or pulse entry.It is easily installed through the webserver and it can be monitored remotely. The collected data is formatted in CSV and sent periodically to a server via GPRS or Ethernet network.

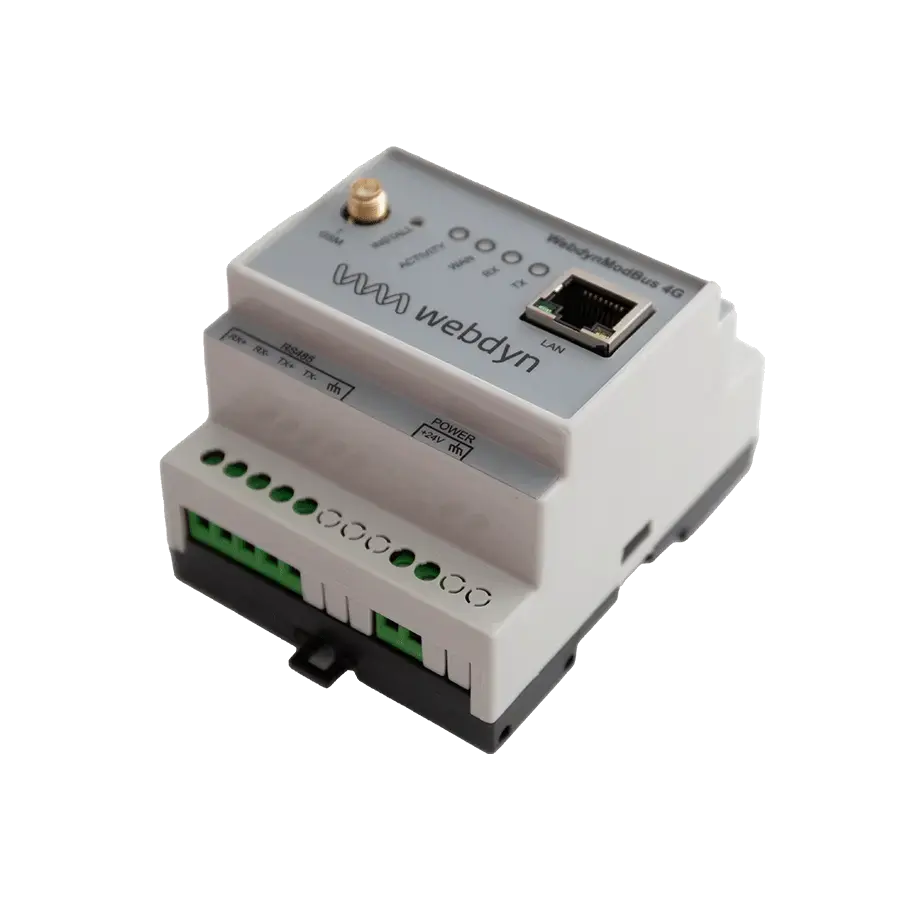

WebdynModBus
Gateway for the monitoring of Modbus equipment
The WebdynModbus gateway is used to monitor and collect data from Modbus equipment (slaves). In a single box, the gateway has a Modbus RTU or Modbus TCP interface as well as 4G/3G and Ethernet interfaces it can use to communicate with the information system. The WebdynModbus gateway behaves as a Modbus master. It is used to manage a set of slaves connected to a hard-wired bus (RTU mode) or an Ethernet link (TCP). It is easily installed through the webserver and it can be monitored remotely. The collected data is formatted in CSV and sent periodically to a server via the cellular or Ethernet network.

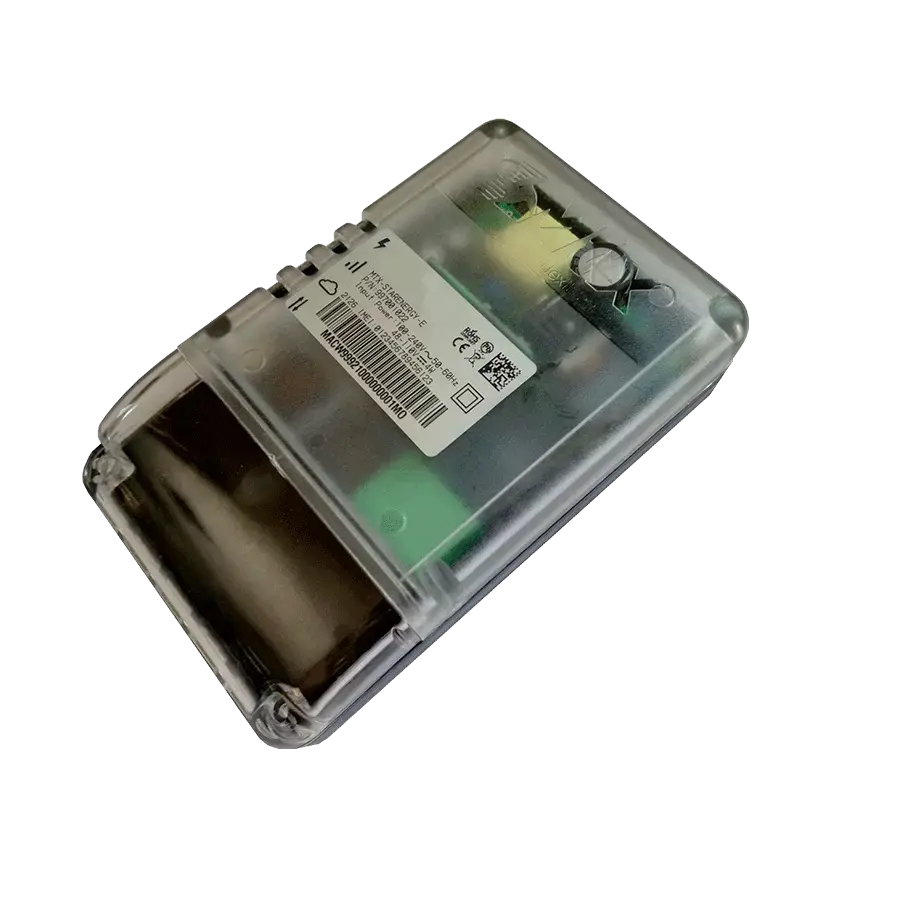

MTX-StarEnergy-E
Industrial IoT modem with LTE for metering applications
The MTX-StarEnergy-E is an innovative industrial modem that comprises a set of features specially oriented to the electric market. This powerful device allows the reading of IEC 60870-5-102 protocol meters via both IP-RS232/RS485 gateways with priority management through 2G/3G/4G-LTE networks, as well as CSD calls. The MTX-Star-Energy-E also monitors the presence of the meter by sending an alarm in case of no detection.

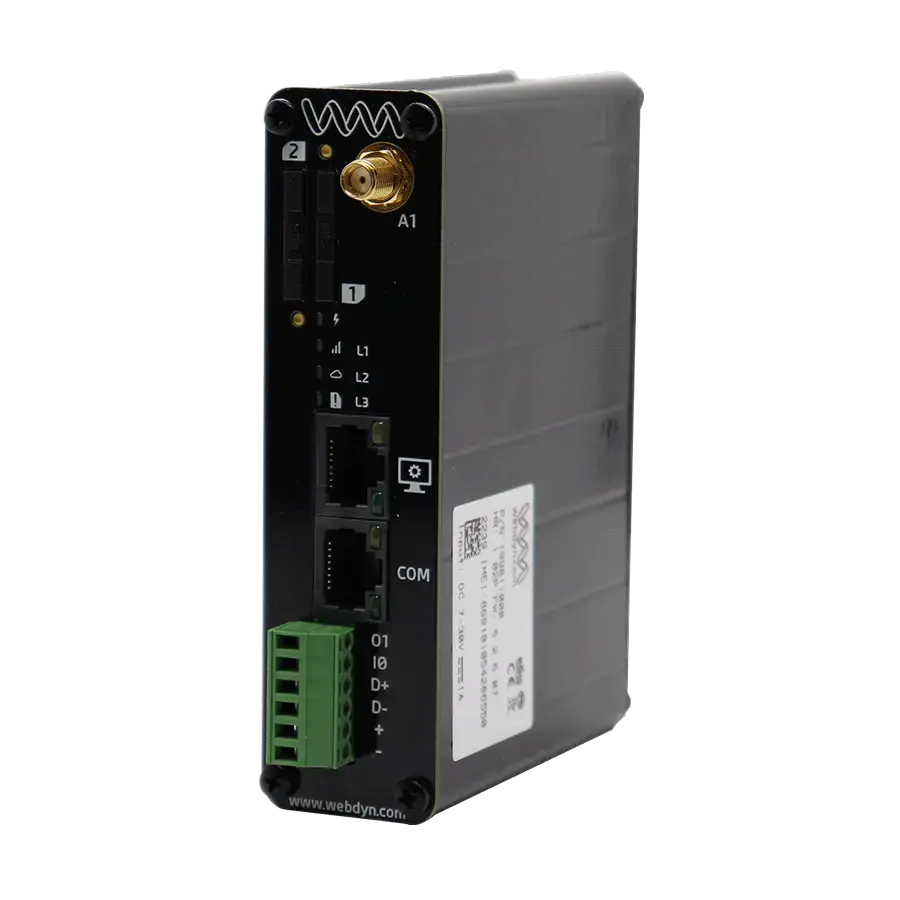

EasyTunnel
Industrial connecting IoT
EasyTunnel is an innovative and powerful all-in one solution. Thanks to its set of interfaces (RS232, RS485, dual SIM, digital I/O...) and the embedded new TITAN V6 firmware (Modbus, MQTT, IPSec, logger,...) provides a full bundle of functionalities which will fulfill all your IoT applications needs with no need for further hardware, shortening the time-to-market and providing a very cost-effective solution.

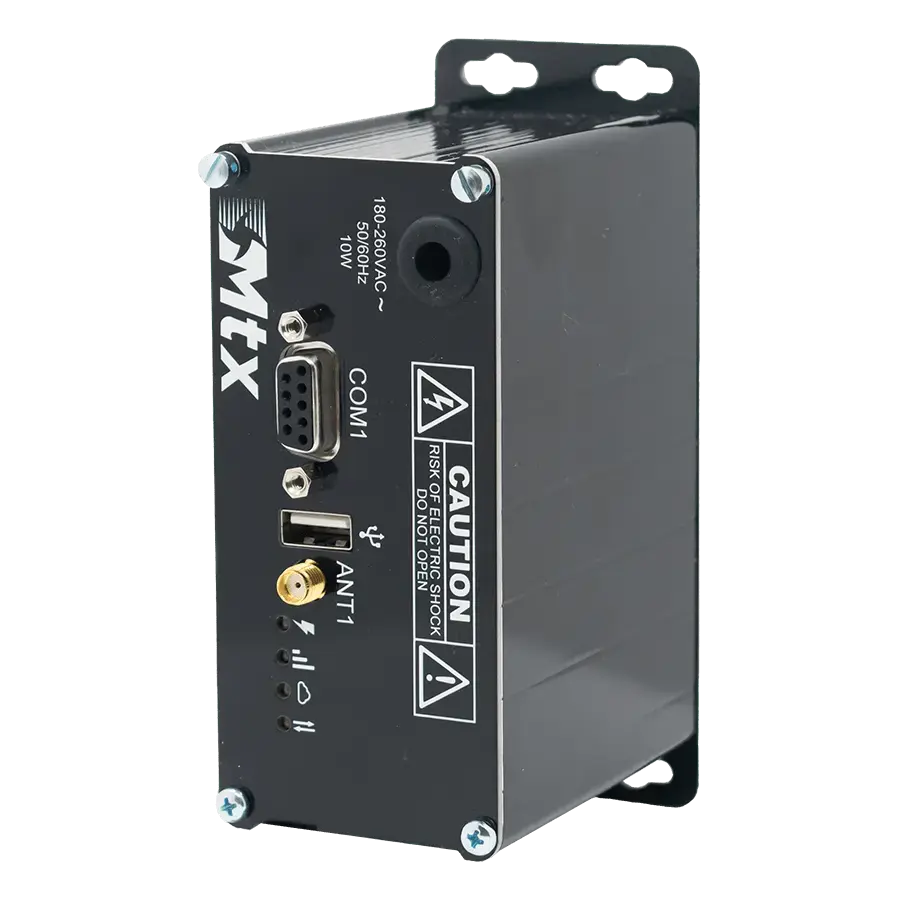

MTX-StarEnergy-M
Industrial IoT modem with LTE for metering applications
The MTX-StarEnergy-M is an innovative industrial modem that comprises a set of features specially oriented for the electric market. One of its most remarkable features is the self-provisioning according to the SIM card inserted: the router is able to detect the service provider according to the SIM inserted and autoconfigures itself (APN, sockets, etc.) depending on the provider. Also important is the selection of the service provider according to the quality of the service. In roaming SIM cards, the router analyzes the quality of the signal from several service providers and automatically connects to the one with the best quality.

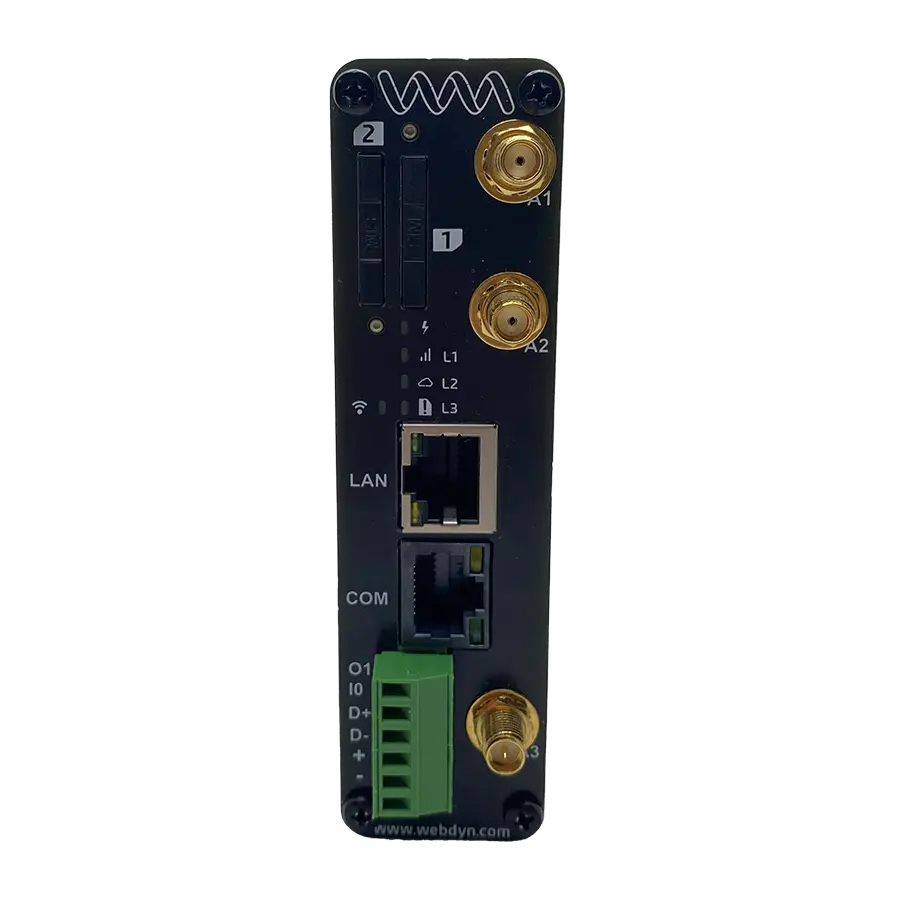

EasyRouter
Industrial connecting IoT
EasyRouter is an innovative and powerful all-in-one solution. Thanks to its set of interfaces (RS232, RS485, dual SIM, digital I/O, gigabit Ethernet, GPS and WiFi) and the embedded new TITAN V6 firmware (Modbus, MQTT, IPSec, logger,…) provides a full bundle of functionalities which will fulfill all your IoT applications needs with no need for further hardware, shortening the time-to-market and providing a very cost-effective solution. As new feature, EasyRouter allows to the user to develop and run their own applications scripts (based on javascript) and giving to the end IoT application a custom style. It includes a big number of examples with source code.

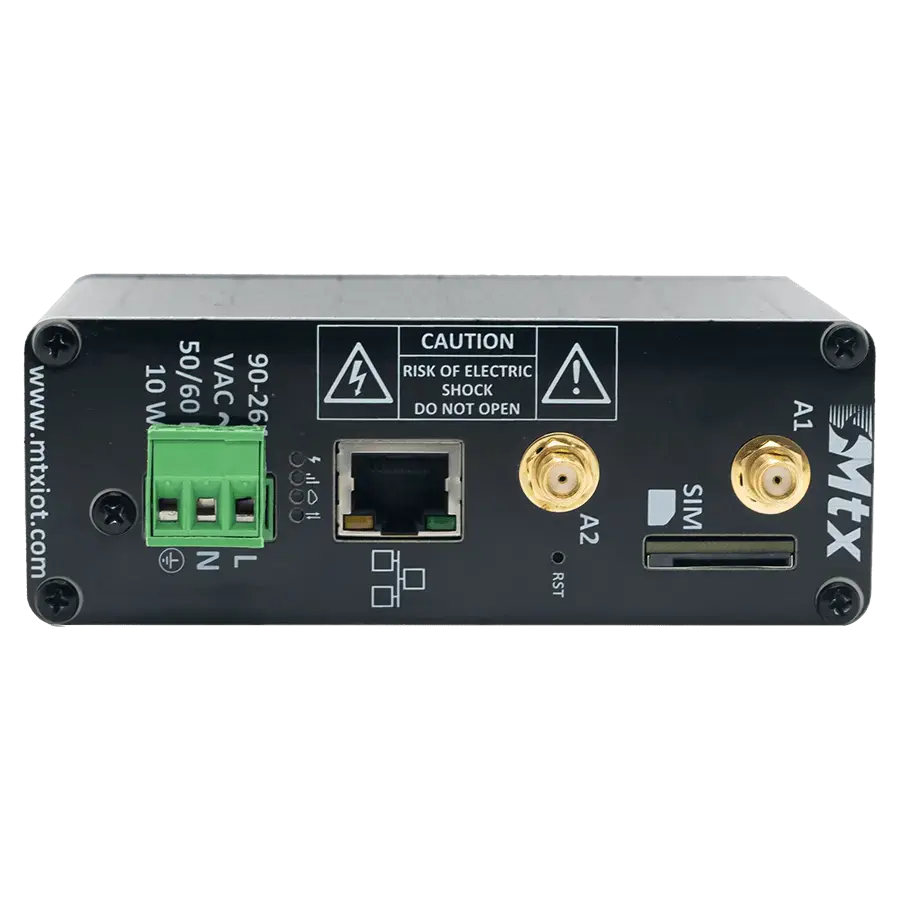

MTX-Router-Q
LTE cat.4/4G entry level industrial IoT router
The MTX-Router-Q is an innovative industrial router with Gigabit Ethernet. By providing an easy integration and powerful interfaces, it avoids further hardware components. It can be used in infinite M2M and IoT applications. It has LTE cat.4 connectivity with fallback 3G/2G. The MTX-Router-Q also includes advanced functionalities such as: DHCP server, NAT, among others. It is powered by internal AC power supply and it has an internal battery for allowing a long term working hours.

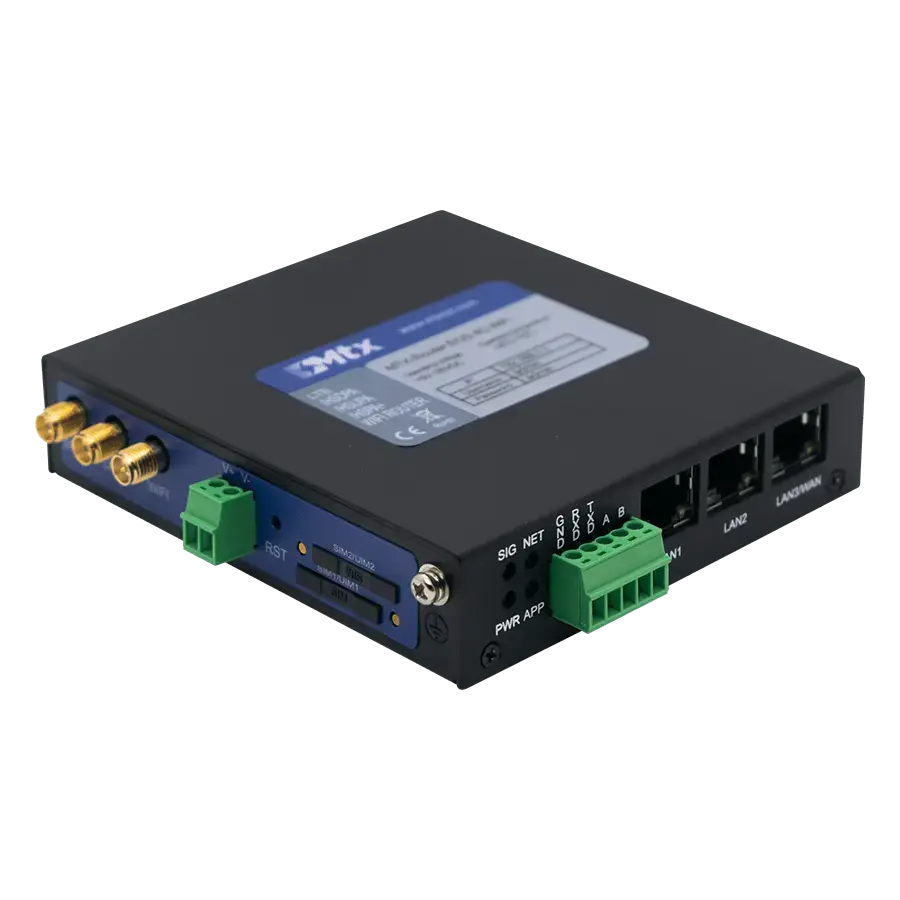

MTX-Router-EOS
LTE/4G, dual SIM and 3x Ethernet compact industrial IoT route
The MTX-Router-EOS is an entry level router developed for industrial applications. It has a very compact design with a very rugged enclosure and accessories to be mounted on a wall mount. It features dual SIM, 3x Ethernet, VPN client and 3 antennas included (another one for GPS optional). The MTX-Router-EOS can be used in many different IoT applications like kiosk, telemetry, remote sensing, smart grid, security, industrial automation, etc.

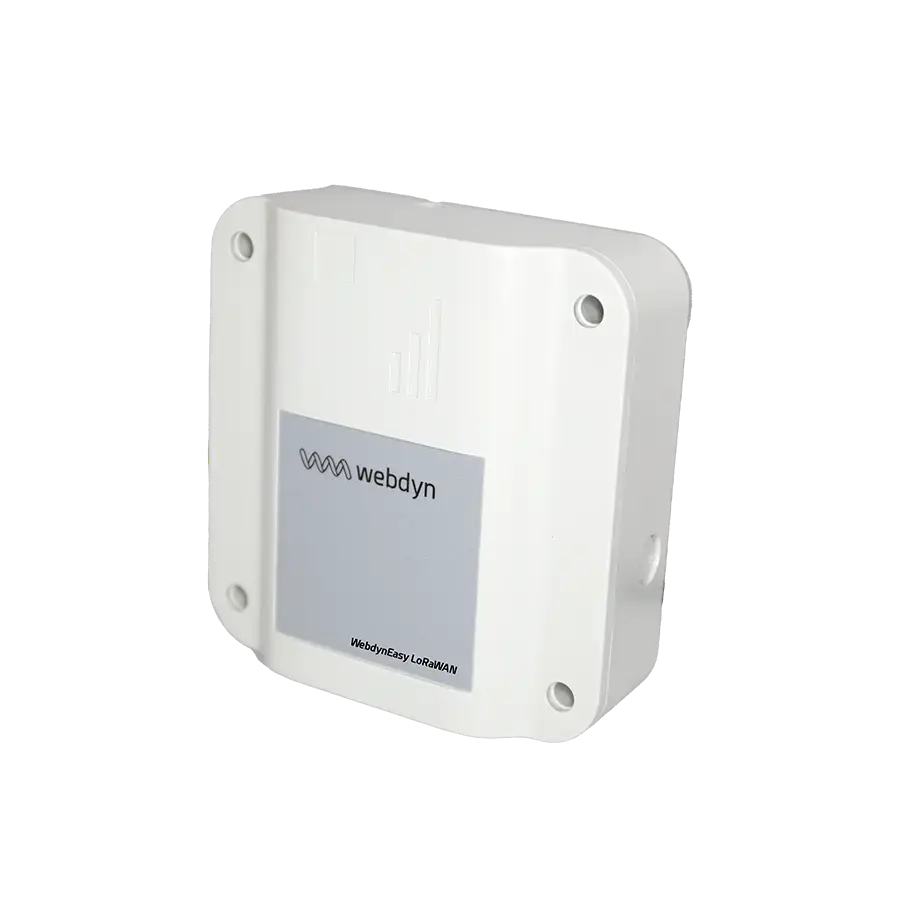

WebdynEasy LoRaWAN
Gateway for sensors using LoRaWan network
The WebdynEasy LoRaWAN equipment is specific to wireless networks using LoRa radio technology. Its main function is to provide the connection between sensors and a data server using the LoRaWAN network. The purpose of the hub is to collect LoRaWAN and/or Modbus data and to send it at a regular frequency to a remote server (IS) using Ethernet or 3G/4G. The configuration is done from the embedded webserver. It uses “Over The Air Activation”, and it listens on 8 different frequencies at once. This allows it to capture data emitted using LoRaWAN from sensors that are far away. The channels can be configured locally or remotely.

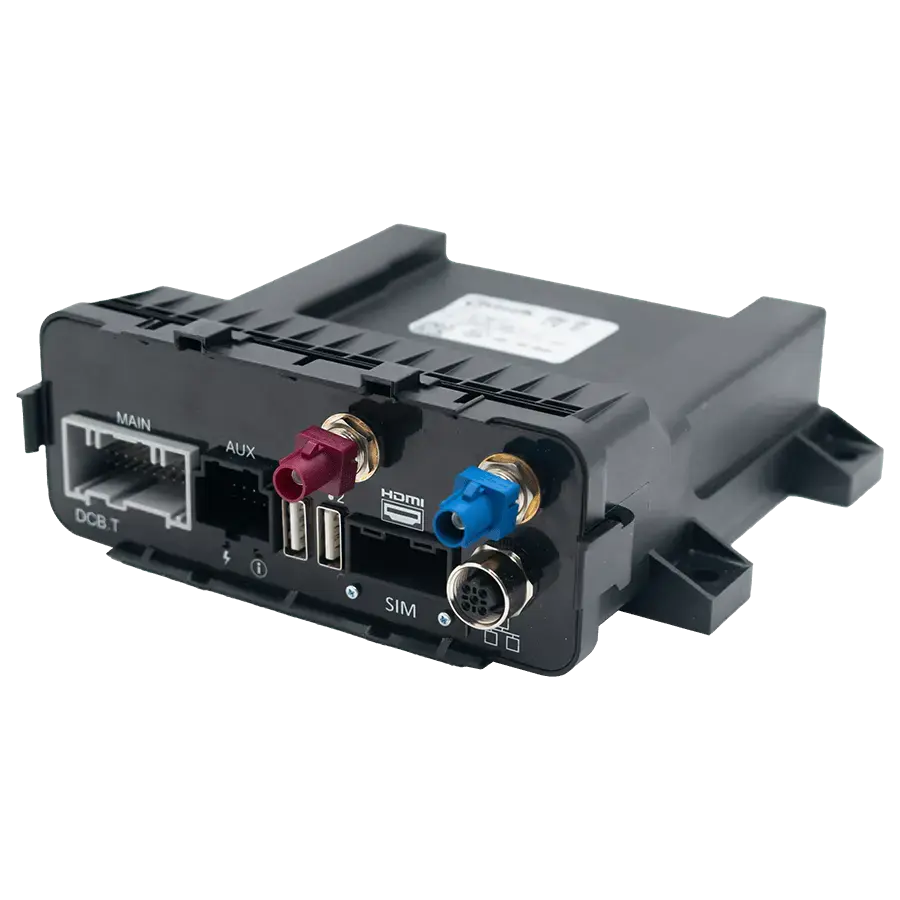

MTX StarRoad II
Transportation
Industrial LTE/4G Router for Automotive
The MTX-StarRoad II is an IoT router for Automotive with its enclosure and connectors adapted to vehicles with ITxPT certification. It stands out for its 8x digital inputs, 4x outputs, 2x configurable RS232/485 ports, 2x CAN ports, Ethernet, HDMI and GPS. Furthermore, the MTX-StarRoad II can be used as an open Linux platform on which to develop your own application. Thanks to its complete set of interfaces and the possibility of integrating client software, it is the ideal solution for intelligent transportation and vehicle monitoring solutions.

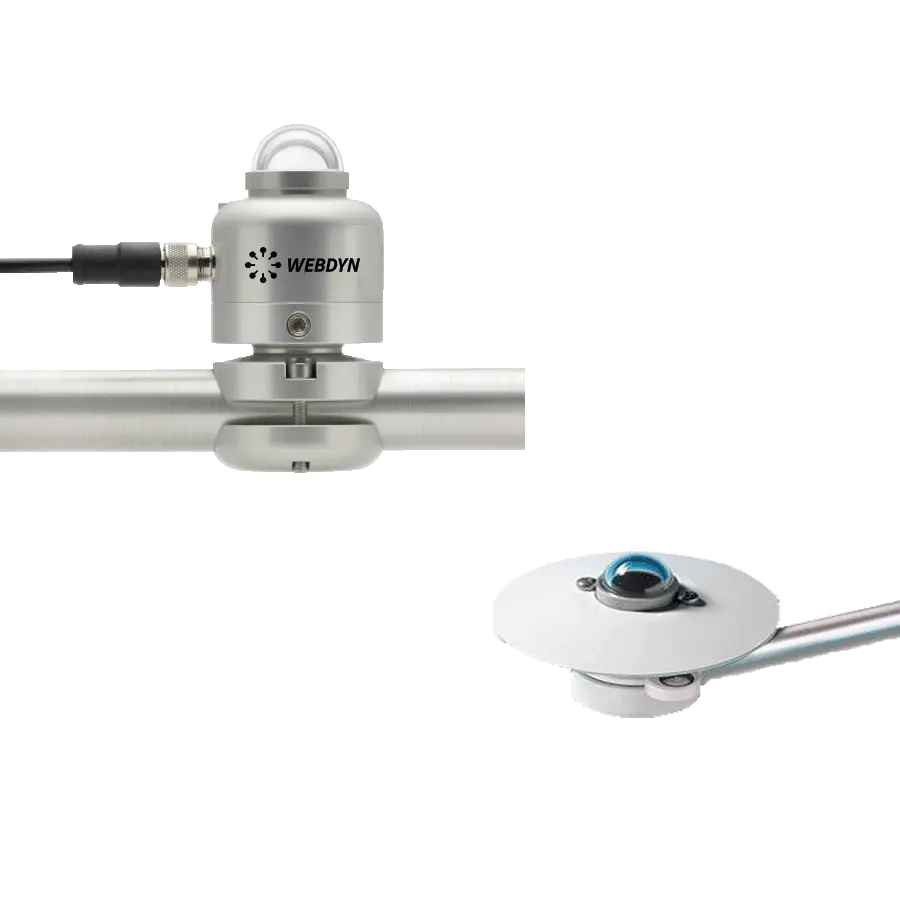

Irradiations sensors
Irradiation sensors Class II & Class I pyranometers
Pyranometers measures hemispherical solar radiation according to the latest standards. They are classified as ISO 9060 secondary standard, first class or second class and offer the best measurement accuracy in its class. They are used extensively in solar energy, PV monitoring and in meteorology.

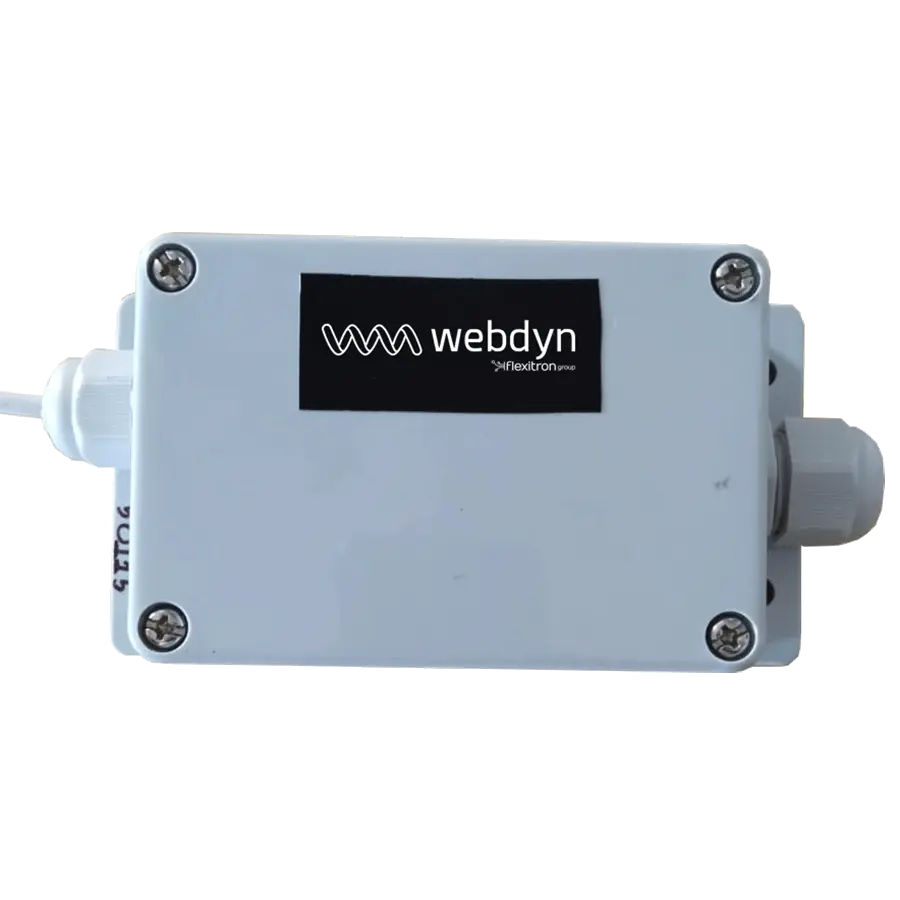

WebdynModbus Beta
Gateway for solar plants with Power Management
The WebdynModbus β manages data from Modbus equipments. On a single box, the gateway includes a RTU/TCP Modbus, GPRS/
WiFi and Ethernet interfaces to commmunicate with the information system. Installation is carried out via the pages of the embedded webserver. Then, data collection can start in an automatic and periodic way. After synchronising with the remote server, actions can be carried out remotely. This gateway operates like a Modbus master. The variables associated to each Modbus slave are defined in the configuration files or the local HTML, and the associated data is reachable in reading/writing. The functions synchronise with the server using web services.

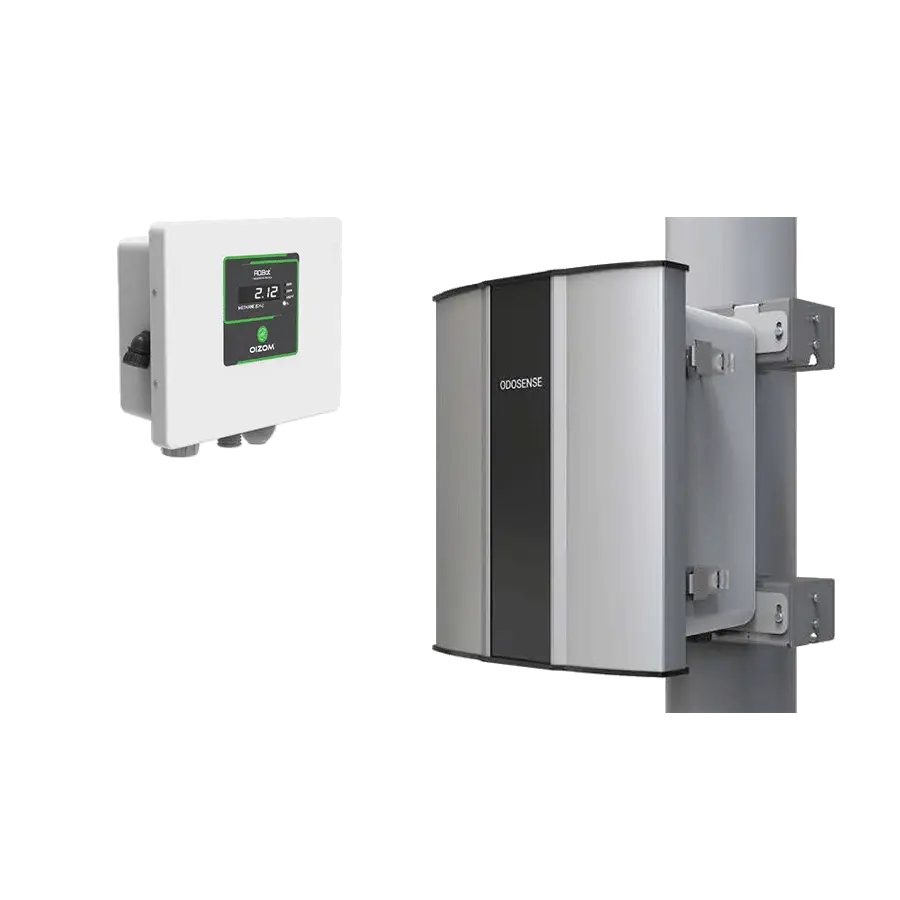

Environmental sensors
Industrial air quality sensors.
AQBot is an industrial air quality monitor with automation capabilities. Dustroid is an Online Particulate Monitoring system to measure the concentration of dust particles in the ambient
air. Odosense is the real-time odour emission tracking solution. Polludrone is a Continuous Ambient Air Quality Monitoring System.

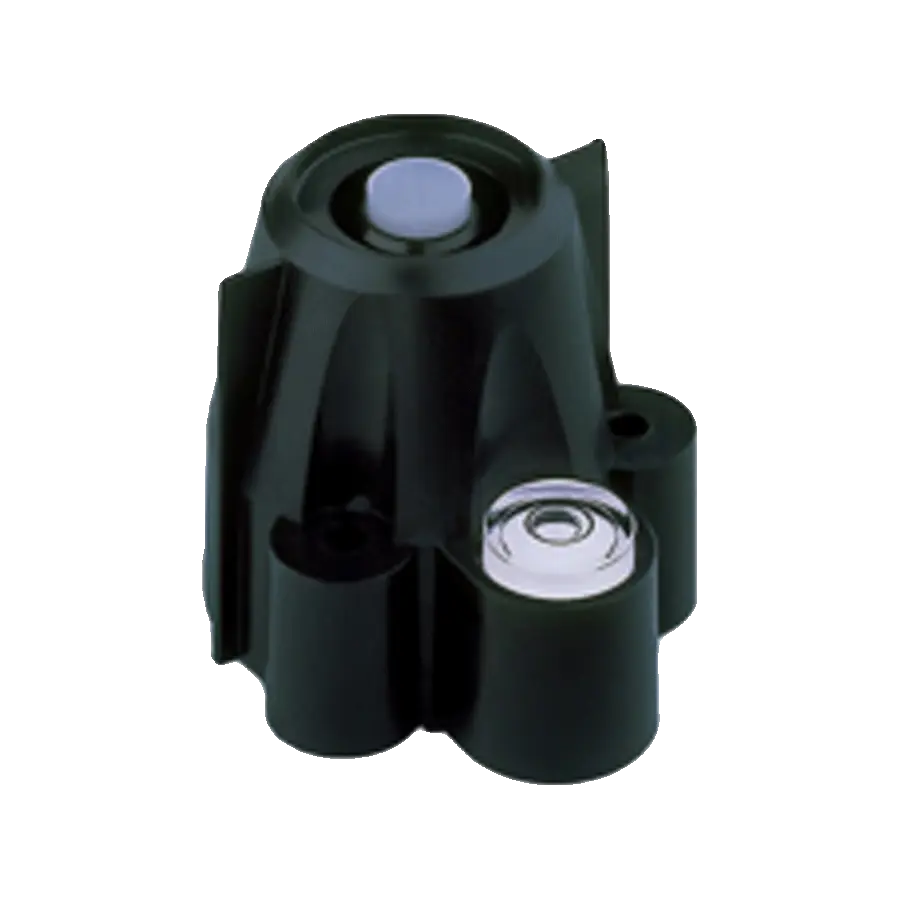

Solar radiation sensor
Solar radiation sensor WDS-RD-300I
The Solar Ratiation Sensor, or solar pyrameter, measures global radiation, the sim at the point of measurement of both the direct and diffuse components of solar irradiance. The sensor’s transducer, which converts incident radiation to electrical current, is a silicone photodiode with wide spectral response.

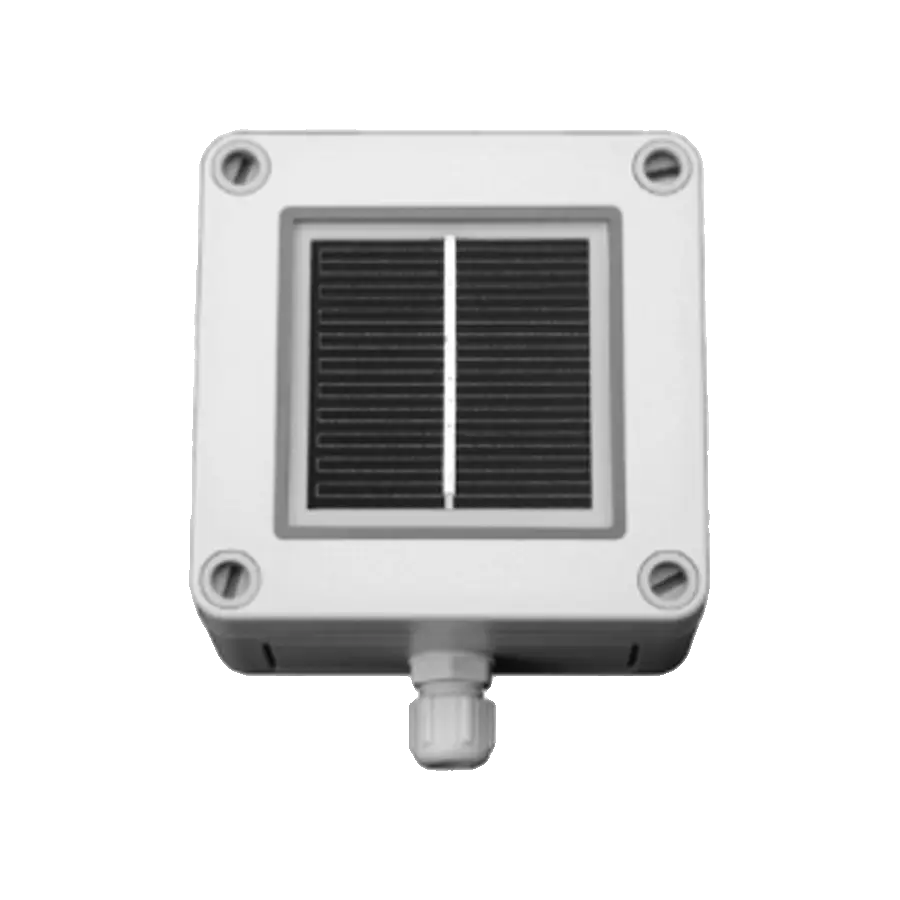

Silicon solar radiation sensor
Silicon solar radiation sensor Type SOZ 03
A silicon solar sensor can be used as an irradiance sensor, because the short-circuit current is proportional to the irradiance.
The sensors are built with monocrystalline or polycrystalline laminated under special solar glass with excellent UV resistance and long-term stability.

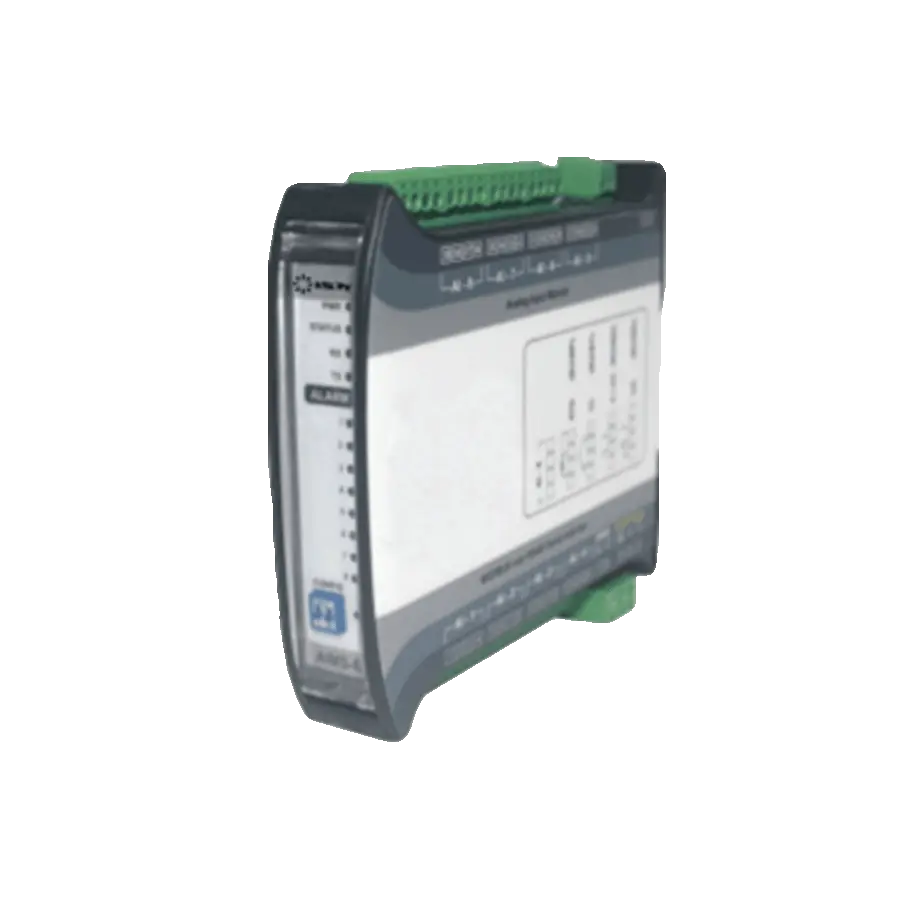

4/8 channel analogue input
4/8 CHANNEL DIN-Rail ANALOG INPUT MODULE MODBUS OVER RS485 SERIAL INTERFACE

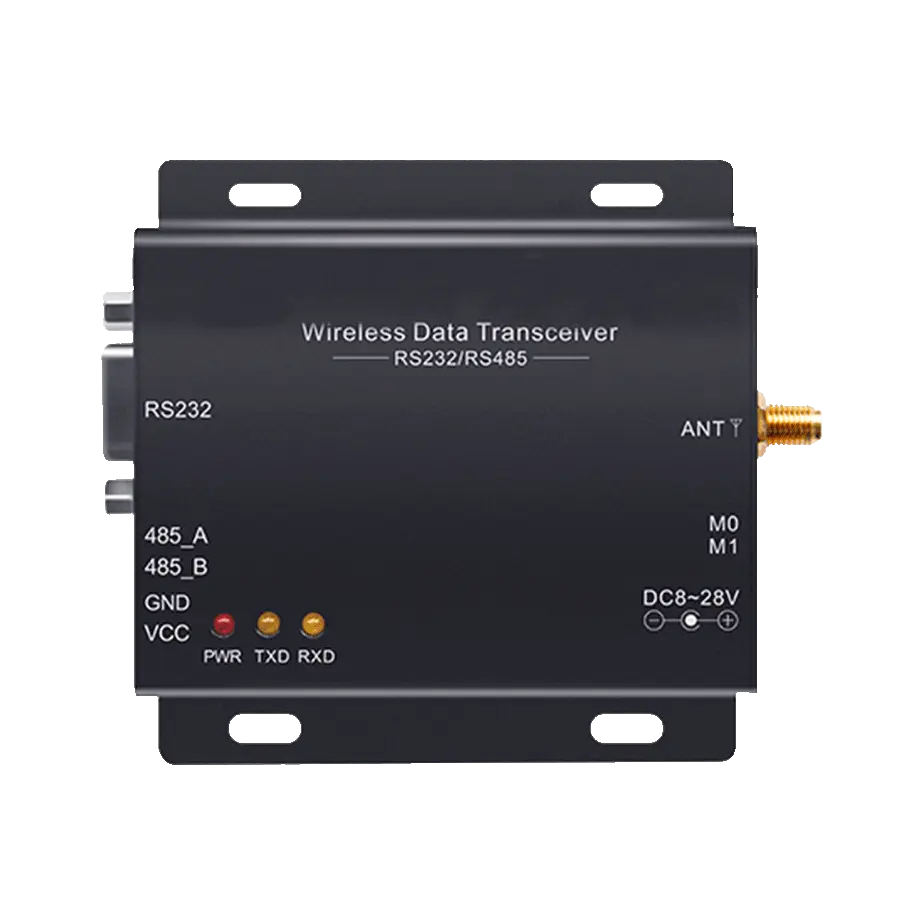

Wireless data transceiver long range
WIRELESS DATA TRANSCEIVER LONG RANGE DTU RS485 RS232

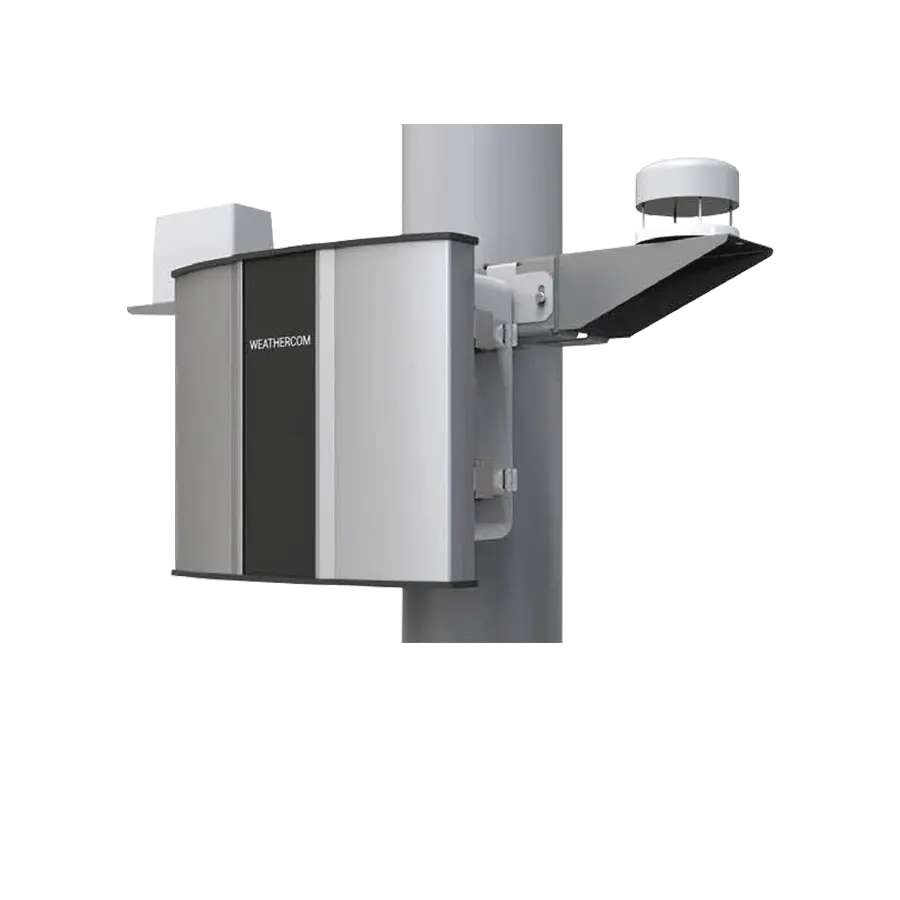

Weather Sensor
Industrial air quality sensors.
Weathercom measures meteorological parameters such as wind speed & direction, rainfall, visibility, UV-radiation, light intensity, temperature, humidity, pressure, etc. Hyperlocal
meteorological parameters can be monitored in real-time which can help to take on-time decisions in case of any natural hazard.

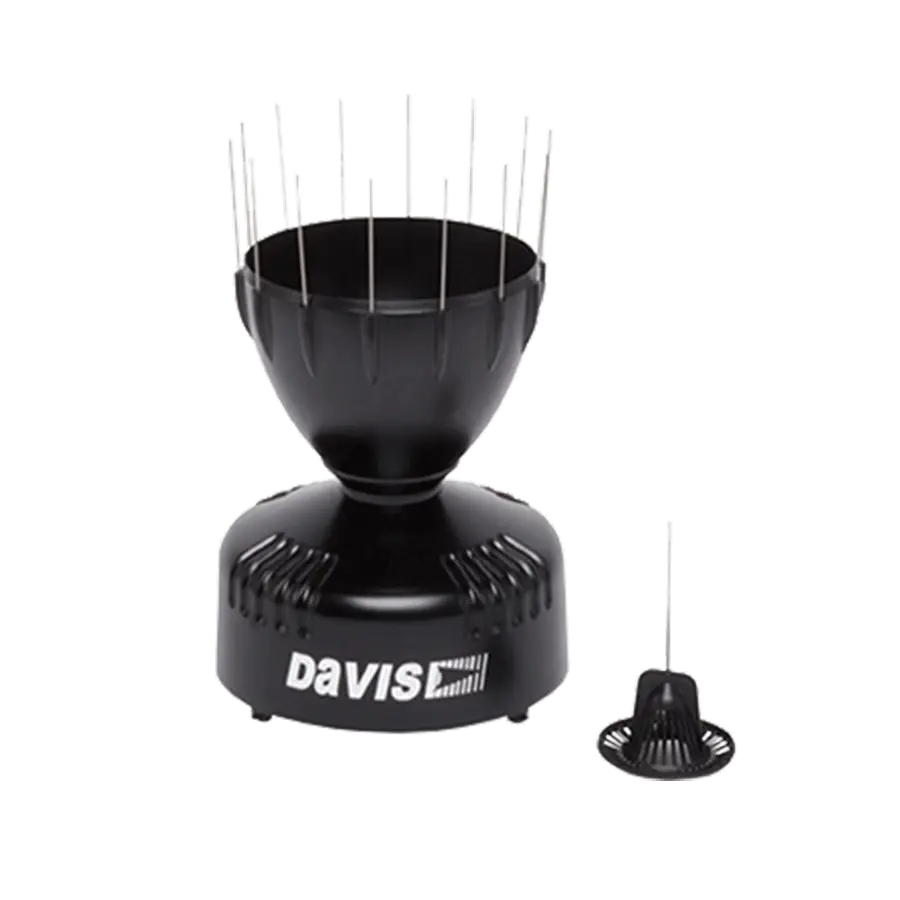

Stand alone rain collectors
STAND ALONE RAIN COLLECTORS 6463 & 6465
The Rain Collector is designed to meet the guidelines of the World Meteorological Organization. Rain enters the collector cone, passes through a debris-filtering screen, and collects in one chamber of the tipping bucket. The shape is aerodynamically designed to minimize rainfall catch reduction caused by high winds.

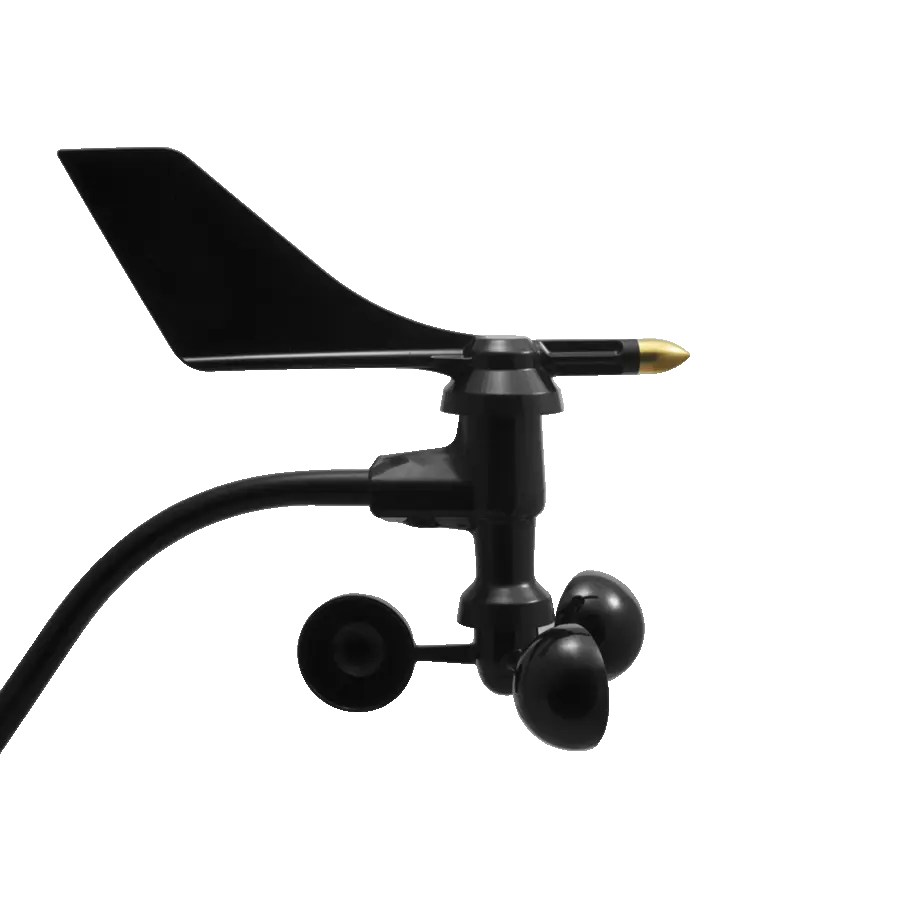

Anemometer
ANEMOMETER - VANTAGE PRO2TM ACCESSORIES
Includes both wind speed and wind direction sensors. Rugged components stand up to hurricane-force winds, yet are sensitive to a light breeze. Includes sealed bearings for long life. The range and accuracy specifications have been verified in wind-tunnel tests.

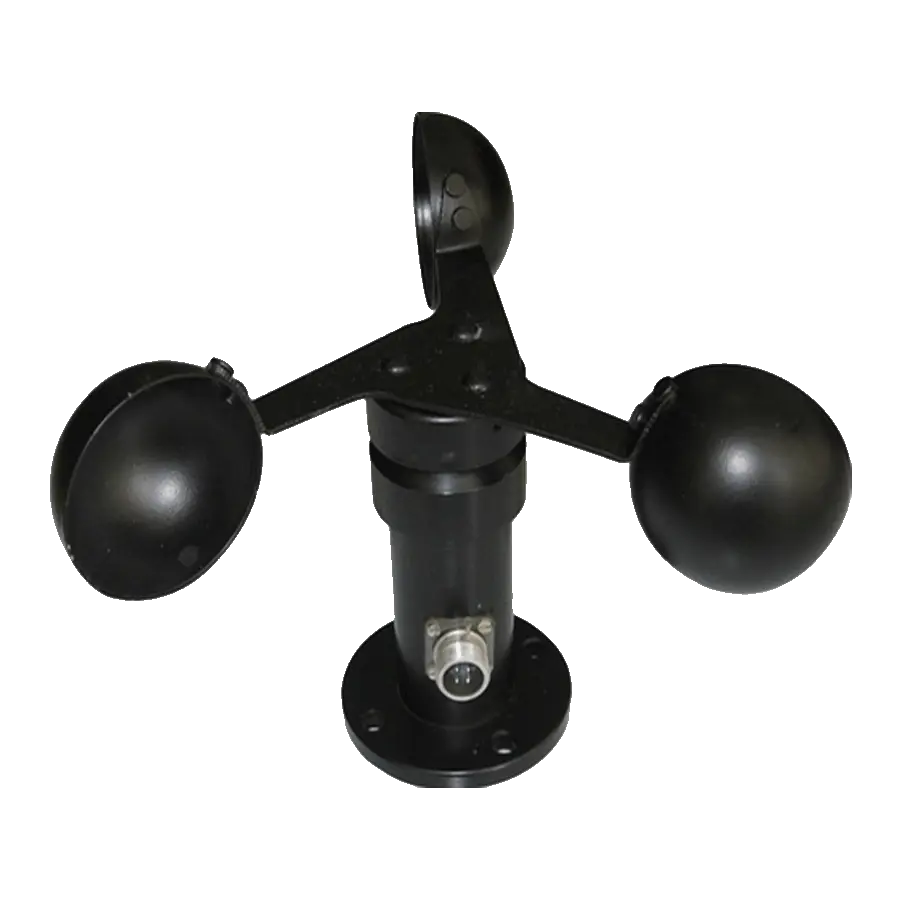

Wind speed sensor
WIND SPEED SENSOR WDS - WS - 04l
The wind speed sensor is composed of a shell, three wind cups and a circuit module. The whole sensor has a high strength, weather resistance, corrosion resistance and water resistance, will be to ensure the long-term use of the instrument, and the accuracy of the wind speed collection.

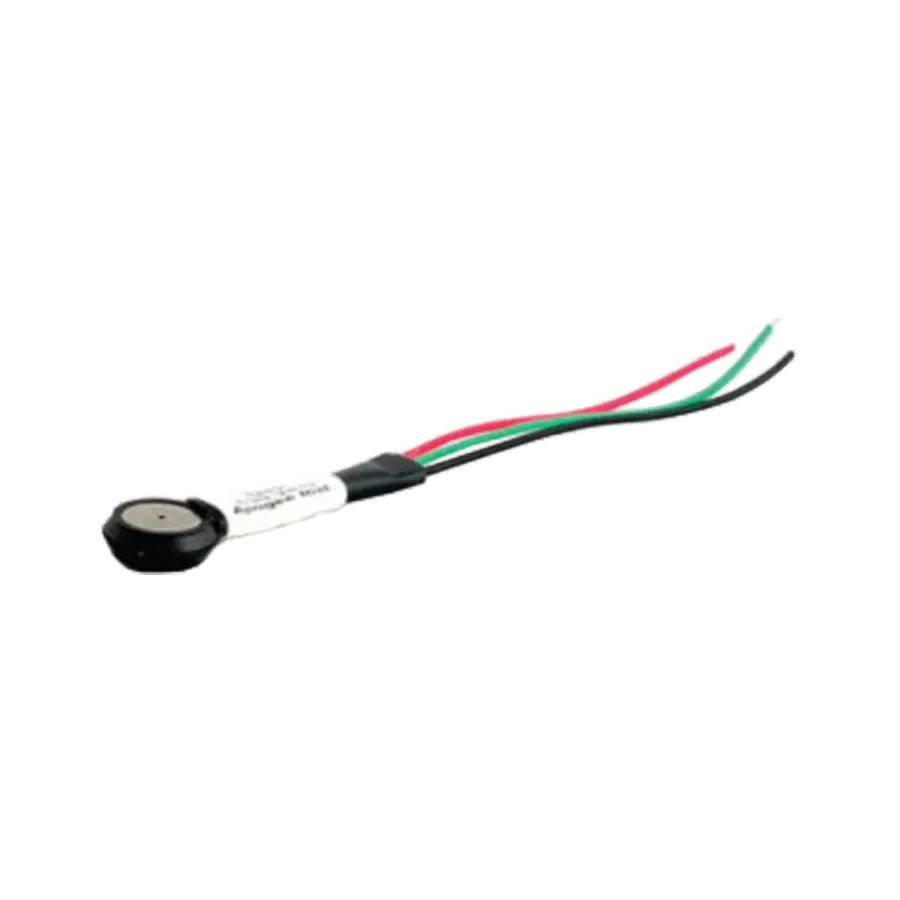

Barometric pressure sensor
BAROMETRIC PRESSURE SENSOR - SB-100
This barometric pressure sensor combine a wide pressure measurement range, wide operating temperature range, high accurancy, low power use, and low cost into a small, rugged package. Ideal for continuous barometric pressure measurement on weather stations.

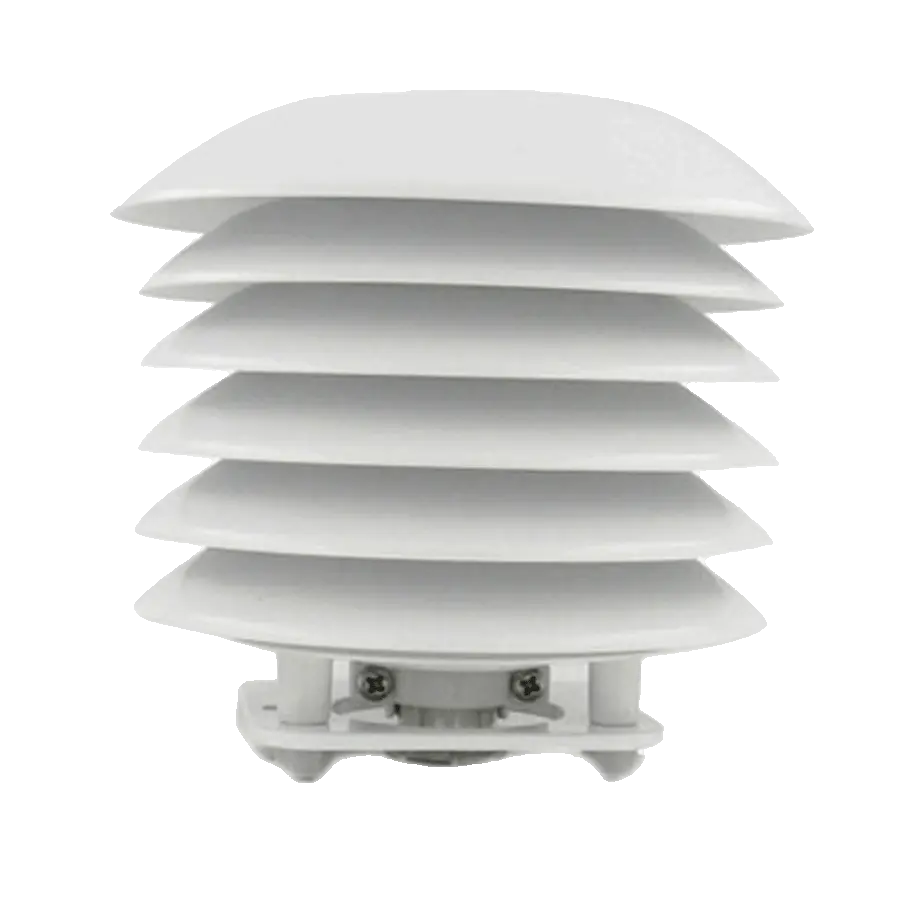

Temperature humidity sensor
TEMPERATURE HUMIDITY SENSOR MODEL RHT1000S
The temperature humidity transmetter provides accurate and precise measurements of both temperature and humidity. Fast, stable and IP65 enclosure excellent long term stability.

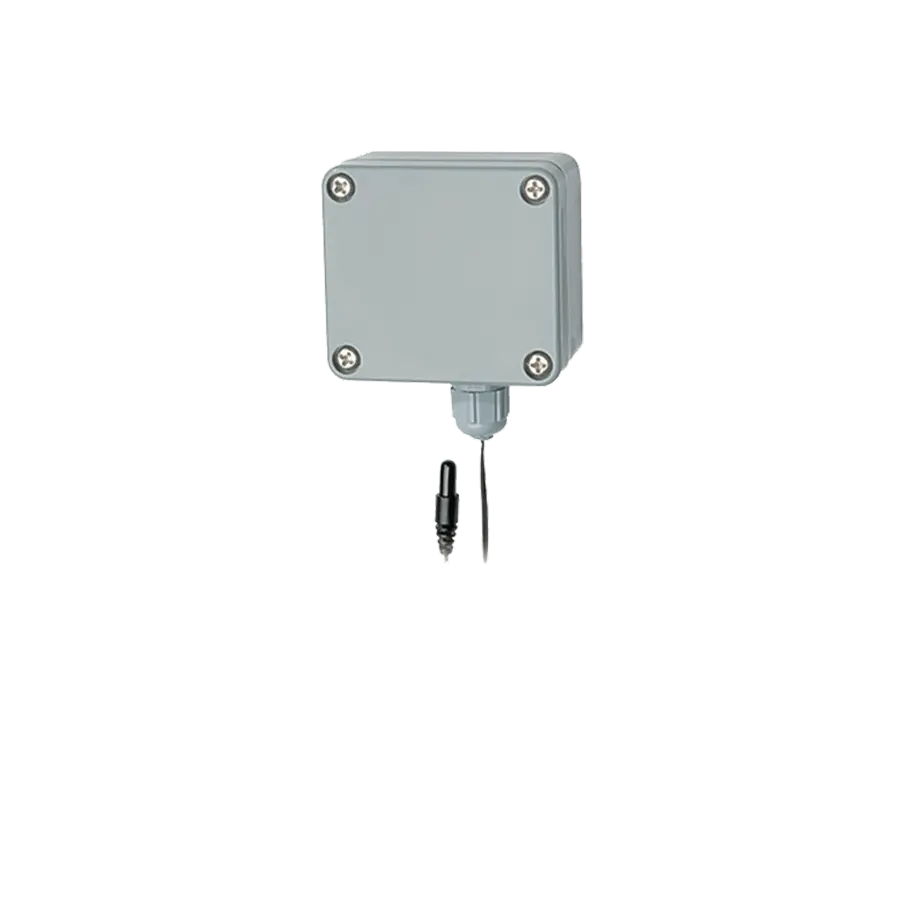

Module temperature transmitter
Temperature transmitter module WDS-MT-04I
The module temperature transmitter is designed to deliver very high performance across varying ambient temperatures. Typically, temperature transmitters isolate, amplify, filter noise, linearize, and convert the input signal from the sensor then send a standardized output signal to the gateway (WebdynSun).
Ambient temperature transmitter
AMBIENT TEMPERATURE TRANSMITTER WDS - AT - 04l
The air temperature transmitter provides accurate and precise measurements of both temperature and humidity.


MFM-EL8400
MFM-WDEM0520
This MFM product is a multi-function power meter used to measure alarms, power pulse output, power parameters, to monitor switch status and transmits output functions.

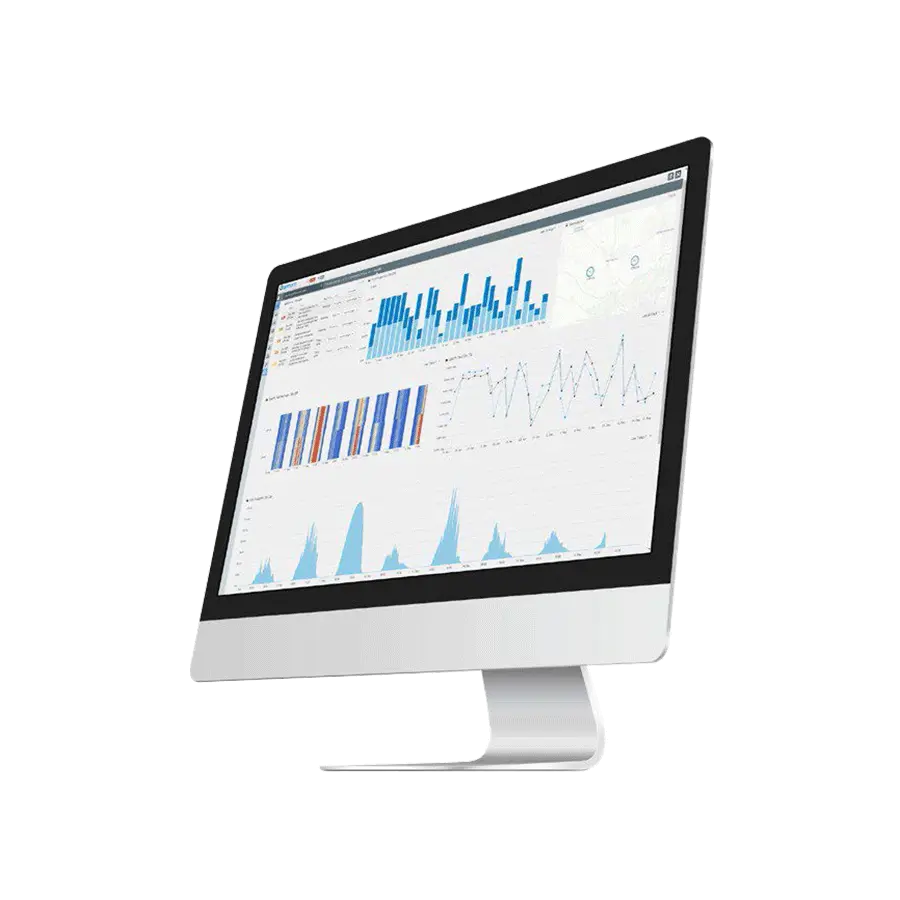

Centralised Web Portal
Turnkey solar monitoring
Webdyn in association with our Technologically Leading partners offers – flexible, powerful and secure solar monitoring platform which helps leading renewable companies identify underperforming plants, increase power production and streamline O&M workflows. Our on offer Web Portals comes standard with a wide range of features to monitor large portfolios, analyze plants’ performance and efficiently maintain and manage assets.
