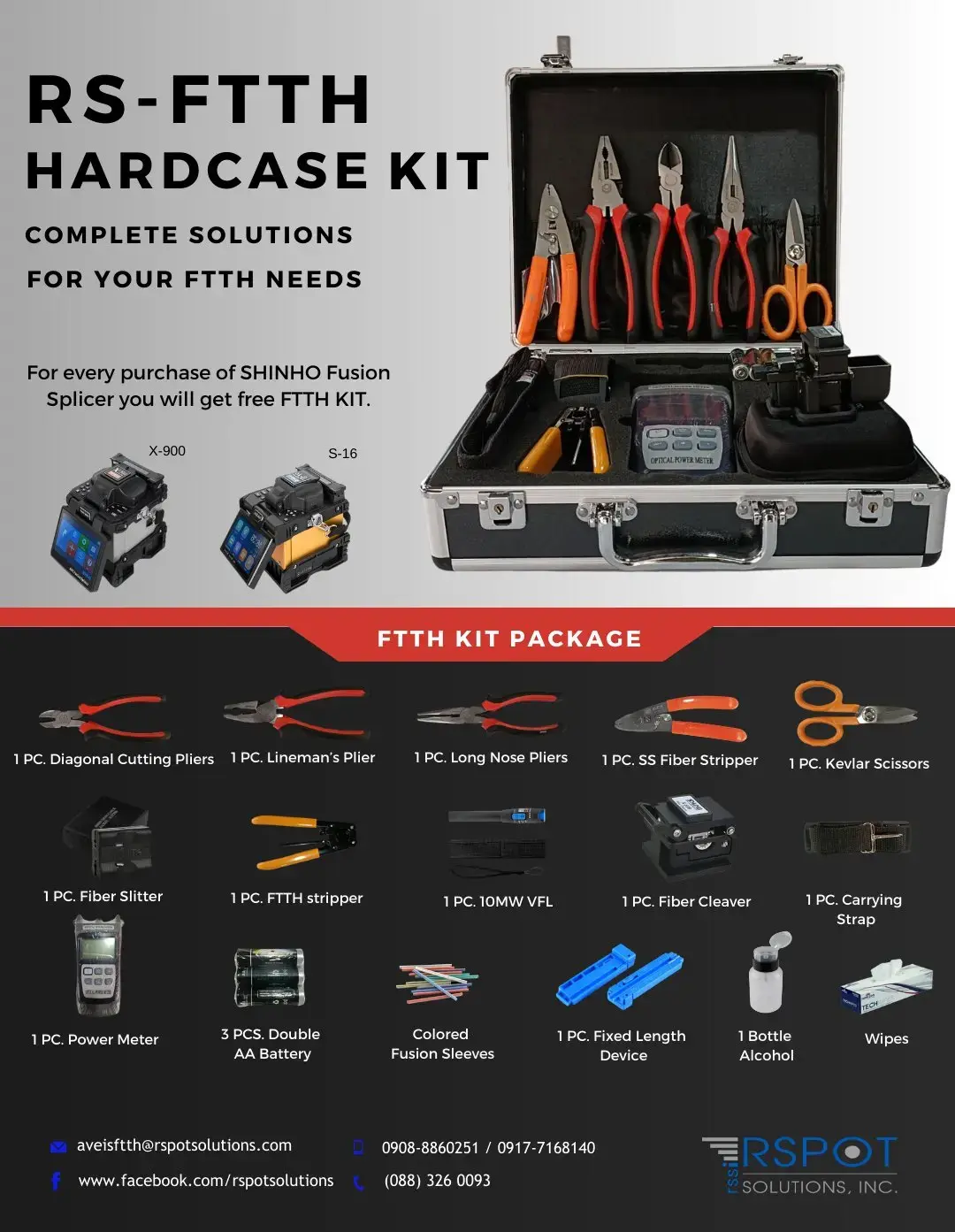

The FTTH Kit
Complete solutions for your FTTH Tools and Testing requirements our Main FTTH Kit bundled with Genuine, Heavy Duty 3 Hole Stainless Steel Fiber Stripper, Improved VFL (Laser not LED Light), Fiber Optic Cleaver, and Fiber Slitter - we've got it all covered!
1 x AV-FC01 Fiber Cleaver
1 x AV-PM300A Power Meter -70 ~ +10 w/ USB Cord, SC Adaptor
1 x AV-VFL-20 Visual Fault Locator
1 x AV-CF03 3-Holes Stainless Fiber Stripper
1 x AV-T15 Cable clipper Pill
1 x AV-CB Black Carrying Case
1 x Kevlar Scissor
1 x Linesman Plier
1 x Long Nose Pliers
1 x Diagonal Cutting Pliers
1 x AV-AB160 60ml Alhocol Bottle
1 x Fixed Length Device
1 x Carrying Strap
Product > Fiber Tools > Testing Tools
Testing and other tools
Optical Time Domain Reflector
Model No.: AV-OT300-I
Specification:
Wavelength: 850/1300/1310/1550 nm
Test Time: 500m/1km/2km/4km/8km/16km/
32km/64km/128km/256km
Pulse Width: 3ns/5ns/10ns/30ns/50ns/80ns/160ns/320ns/
500ns/800ns/1000ns/3000ns/5000ns/10000ns/20000ns
File Format: SOR Standard File Format
Data Storage: Internal: 300Mb
External: 4Gb

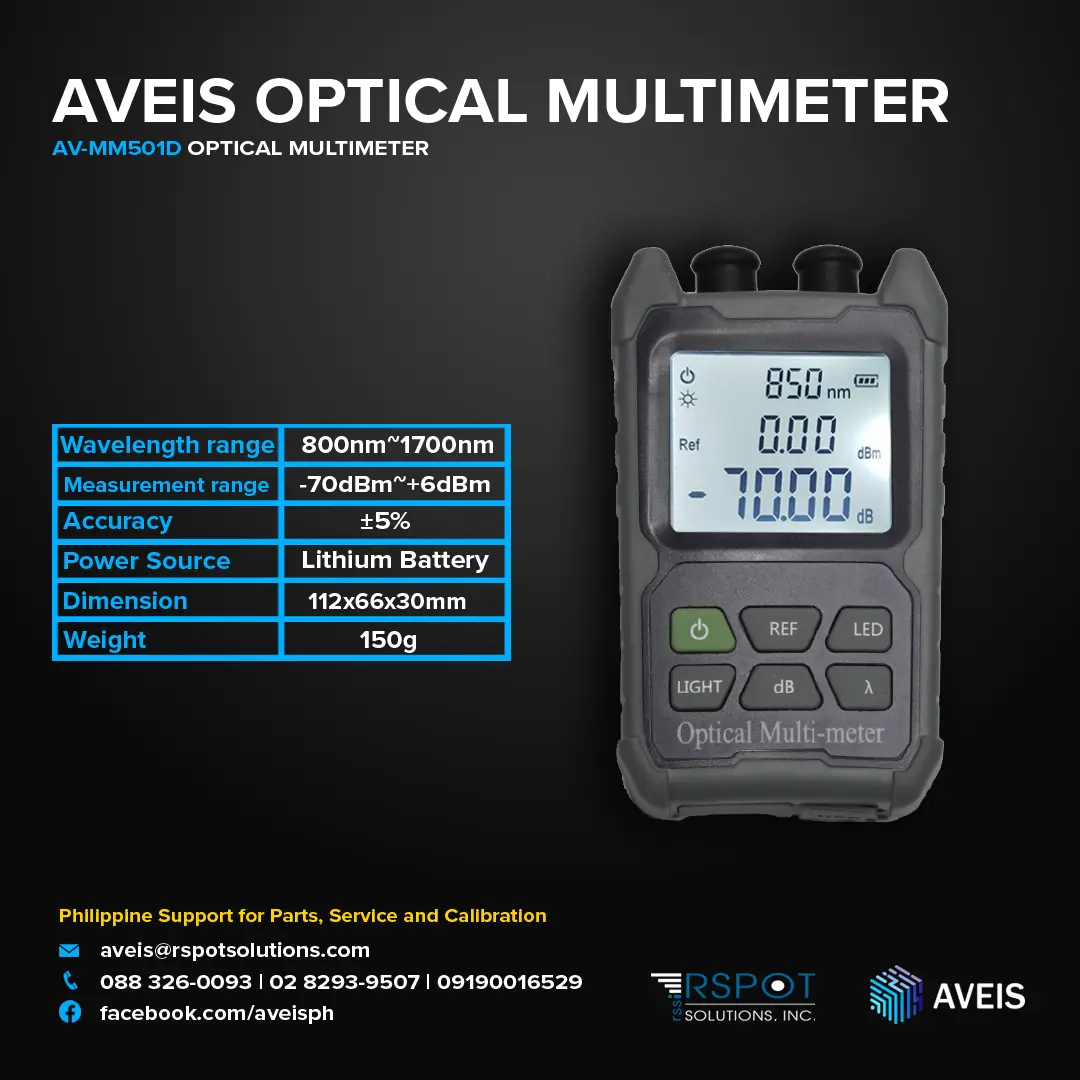

Optical Power Meter
Model No.: AV-MM501D
Specification:
Wavelength Range : 800nm ~ 1700nm
Measurement Range : -70dBm ~ +6dBm
Accuracy : ±5%
Standard Wavelength : 850/980/1300/1310/1490/1550/1625/1650nm
Power Supply: 700mAh Rechargeable Lithium Battery
Auto off-time: 10 min
Weight: 240g

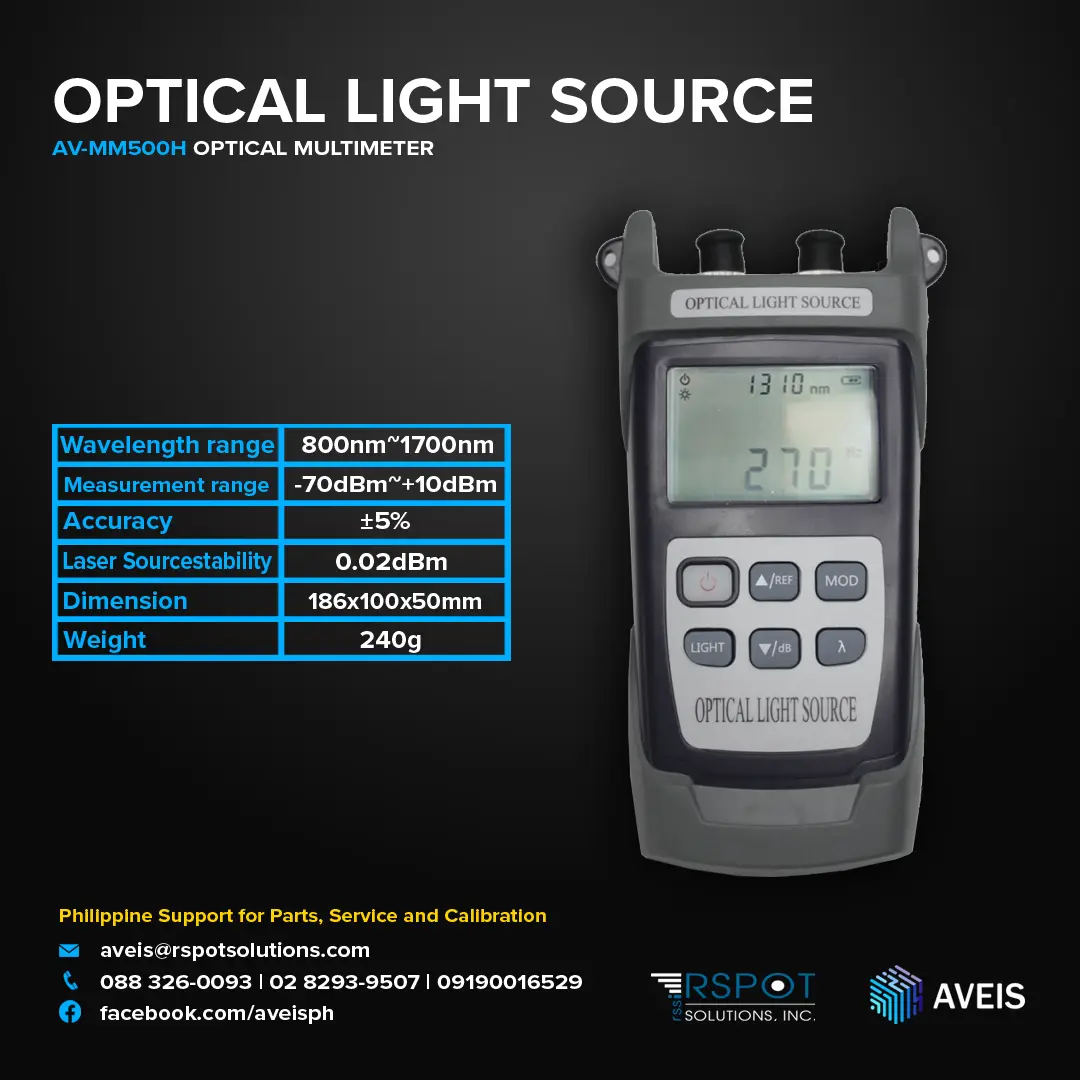

Optical Light Source
Model No.: AV-MM500H
Specification:
Wavelength Range: 800nm ~ 1700nm
Measurement Range: -70dBm ~ +10dBm
Accuracy: ±5%
Standard Wavelength: 850/980/1300/1310/1490/1550/1625/1650nm
Laser Source stability: 0.02dB
Auto off-time: 10 min
Weight: 240g
Expertise and Knowledge

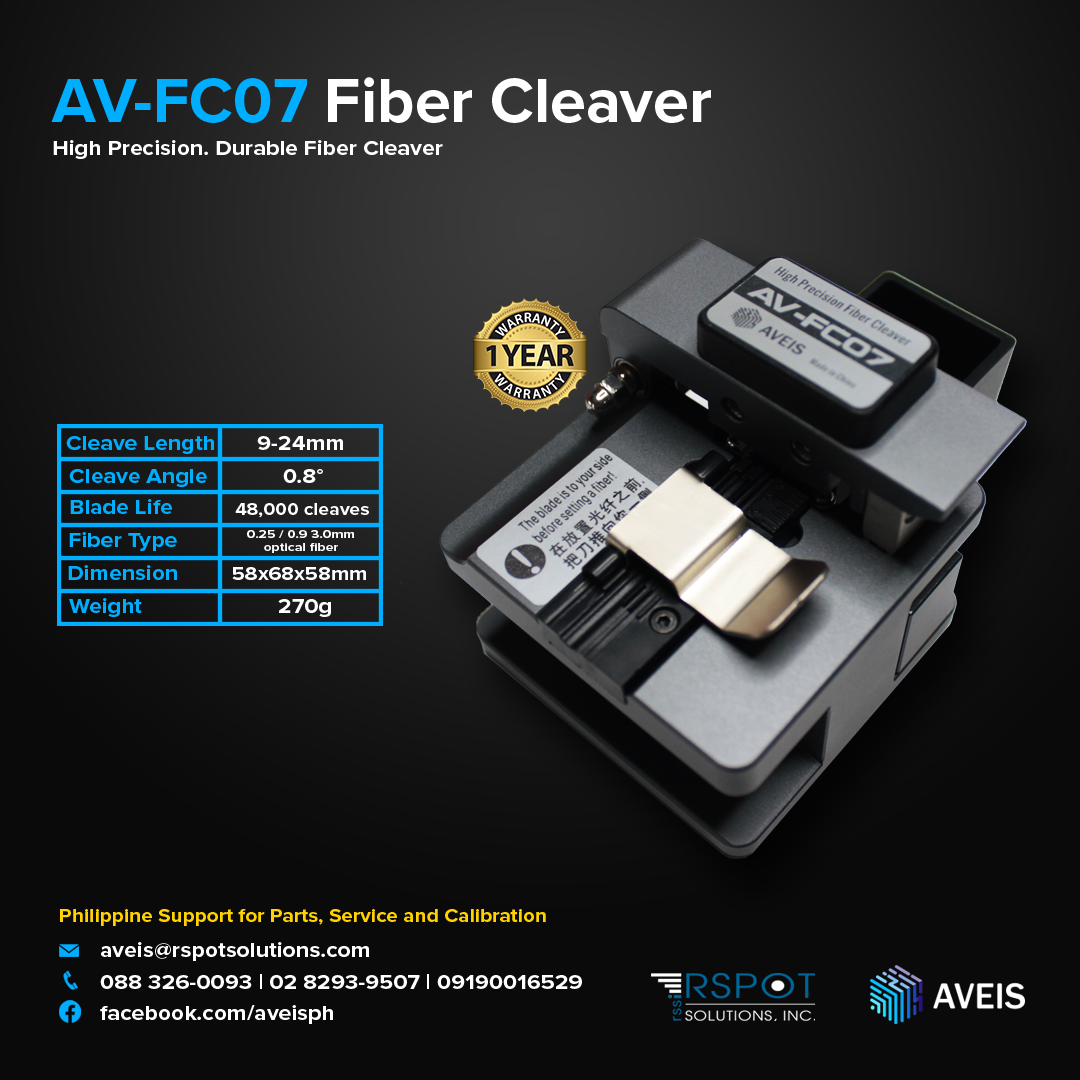

Model No.: AV-FC07
Specification:
Cleave Length: 9-24mm
Cleave Angle: 0.8°
Blade Life: 48,000 Cleaves
Fiber Types: 0.25 / 0.9 3.0mm Optical fiber
Dimension: 58mm×68mm×58mm
Weight: 270g
