RSPOT Solutions provide thermal camera’s to assist businesses, schools, and households. With the pandemic currently happening globally one of the first few steps to minimize the spread of COVID-19 is to check the temperature of each individual entering the premises.

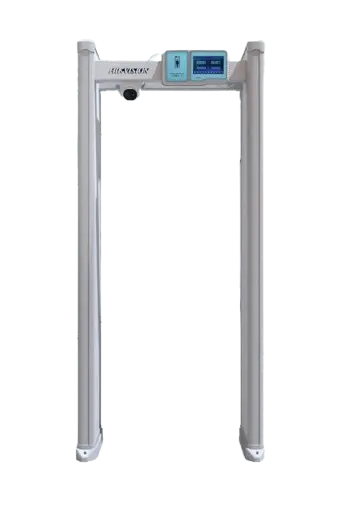

Hikvision ISD-SMG318LT-F

We deployed one of our solutions during the city festival which had many citizens and priests entering the Cathedral. Since using a handheld thermal scanner will take too long and risk the handler of getting close contact to a potential carrier, we provided the Hikvision ISD-SMG318LT-F Temperature Measurement Walkthrough metal detector.


Specifications:

  • Metal detection: metal like a clip
  • Temperature Accuracy: ±0.5° C at 0.5 m to 1.5 m, Target Height: 1.45 m to 1.85 m
  • Multi-Area alarm: Indicates the metal position on the body. Max. 18 areas
  • Non-contact temperature measurement
  • Temperature filtering
  • Counting display
  • One thermographic camera included

Data Sheet

  • Non-contact temperature measurement: face temperature measurement with accurately personnel matching. Temperature accuracy:±0.5 ℃ , detection distance:  0.5 to 1.5 m, target height: 1.45 m to 1.85 m
  • Temperature filtering: adjustable temperature threshold. An over-threshold temperature will trigger the audible strobe light
  • Counting display: displays the walk-through people number, metal alarm times, real time temperature, number of people in abnormal temperature
  • Metal detection: metal likes a clip
  • Multi-Area alarm: Indicates the metal position on the body. Max. 18 areas
  • Modularized component: easy transmission and installation

Smart Functions:

  • Temperature exception detection
  • Linkage for audible alarm
  • Linkage of white strobe light alarm

Thermal Functions:

  • Uncooled sensor, resolution: 160 x 120
  • Supports AGC4.0, DDE, and 3DNR
  • Supports dual-light fusion image
  • Supports visible light and thermal imaging frame over lay
  • 15 pseudo colors: white, black , red, etc. Visible Light Functions:
  • 4 MP, 1/2.7 “ CMOS, Max. resolution: 2688×1520@25fps
  • Supports low bit rate, low latency and ROI
  • Independent settings for day or night condition

Security:

  • Security verification, such as HTTPS, supports license creating
  • Three level of users, IP address filtering, user and password authentication

Interfaces:

  • 10M/100M self-adapting network interface
  • Micro SD/Micro SDHC/Micro SDXC card (128G/256G) slot
  • 1-ch alarm input/output
  • 1-ch audio input/output
  • 1-ch 12 VDC power input

System Functions:

  • Dual-channel, single IP
  • Dual-streaming
  • PoE power supply
  • IP66 protective level
  • Operation temperature: 5℃ to 40℃, ＜95% RH
  • Detection accuracy: metal in the size like a clip (or 1/2 clip) is detectable on the middle of the detector. Goods like Beltbuckle can be excluded. Copper, aluminum, and zinc (over 150 g) , controlled knife, and gun are detectable
  • Anti-interference: multiple detector can work abreast at the same time
  • Multi-area alarm: Indicates the metal position on the body. Max. 18 areas
  • Frequency settings: 100 frequencies can be set, and  different ring tone for different frequency
  • Sensitivity Settings: 255 level of sensitivity can be set
  • People counting: display the number of walk-through people and people in alarm
  • Positioning LED: LEDs on the sides of the detector for indicating the position of the prohibited goods.
  • LCD screen
  • Storing sensitivity parameters for different scenes for shortcut settings.
  • Material: PVC shell

















Thermal Imaging

Sensor

Vanadium oxide uncooled sensor

Max. Resolution

160x120

Pixel Interval

17μm

Response Waveband

8 to 14μm

NETD

≤ 40mk(@25°C,F#=1.0)

Lens (Focal Length)

3mm

MRAD

9.44

Field of View

50°×37.2°

Min. Focusing Distance

0.5m

Aperture

1.1

Pseudo Color

15, white heat, black heat, fusion1, rainbow, fusion2, iron oxide red1, iron oxide red2,

puce, color1, color2, ice and fire, rain, red heat, green heat, and dark blue











Visible Light

Sensor

4 MP 1/2.7" Progressive Scan CMOS

Resolution

2688x1520 @ 25fps

Min. Illuminance

0.0018Lux @(F1.6, AGC ON), Lux with IR

Shutter Speed

1/3s to 1/100,000s

Focal Length

4mm

Field angle

84.0°×44.8°

Day/Night switch

ICR

WDR range

120dB

IR distance

Max. 15m







Image Frame

Thermal Imaging and visible light

Thermal imaging integrated with visible light frame

Picture in picture

Support visible light and thermal imaging frame over lay

Smart Information overlay

Supports (ony temperature measuremet rule and temperature are supported)

Smart Function

Linkage alarm

Linkage of strobe light and audible alarm








Temperature Measurement

Temperature exception detection

Expert mode: 10 pints, 10 frame, 21 rules on each line

Skin-surface temperature detection

AI detection, multi-target detection

Measurement range

30 to 45℃

Temperature Alarm

Alarm triggered when the temperature is over the threshold

Measurement accuracy

No black body :±0.5℃ with black body ±0.3℃









Compression

Video compression

H.265/HH.264/MJPEG

H265:

Main Profile

H264:

Baseline Profile / Main Profile / High Profile

Video bit rate

32 Kbps to 8Mbps

Video standard

G.11 / G.722.1 / G726 / MP2L2 / PCM

Audio bit rate

64Kbps(G.7111) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-192Kbps(MP2L2)





Storage

SD card storage

Micro SD/ Micro SDHC / Micro SDXC card (128GB or 256GB)

NVR Storage

（96/86/77/76）I series NVR Supports live view/playback, rule display, alarm report, and remote configuration


























Network

Main Stream

Visible light: 50HZ: 25fps (1920 x 1080), 25fps (1280 x 960), 25fps (1280 x 720).

Visible Light: 60Hz 30fps (1920 x 1080), 30fps (1280 x 960), 30fps (1280 x 720).

Thermal Imaging: 25fps (160 x 120 (output 320 x 240))

Sub Stream

Visible light: 50HZ 25fps (704 x 576), 25fps (640 x 480)

Visible light: 60HZ 30fps (704 x 480), 30fps (640 x 480)

Thermal Imaging: 25fps (160 x 120 ( output 320 x 240 ))

Network Protocol

IPv4 / IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP,

SNMP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour

Interface protocol

ONVIF(PROFILE S, PROFILE G), ISAPI, SDK, Ehome, GB28181

Max. live view channel number

20

User

Three level: administrator, operator, general user

Safety Strategy

User and password authentication, HTTPS encryption, IEEE 802.1x control, IP address filtering












Interface

Alarm input

1, 0 to 5 V alarm input

Alarm output

1 NO relay output, alarm type configurable

Audio input

1, 3.5mm Mic in/Line in interface. Line Input: 2-2.4V[p-p]

Audio output

1, 600

Reset button

1

Network interface

1, RJ45 10 / 100M self-adaption

RS-485 interface

1

SD card slot

1

client

IVMS-4200 / HIK-CONNECT

Browser

IE7+, Chrome18+, Firefox5.0+, Safari5.02+






General

Power supply

110~240VAC, 50-60Hz

Consumption

72W

Operation temperature and humidity

Speed dome: 5℃ to 40℃, ＜95% RH Walk-through detector: -20℃ to 85℃, 99%, RH

Protective level

Dome camera: IP66 Walk-through detector: IP53




Dimension

Detector dimension (without dome camera)

2200 x 850 x 480 (H x W x D)

Dome camera dimension

138.3 mm x 138.3 mm x 123.1 mm (H x W x D)

Package dimension

2270 x 700 x 230 mm (H x W x D)

Weight

Net weight

About 50Kg

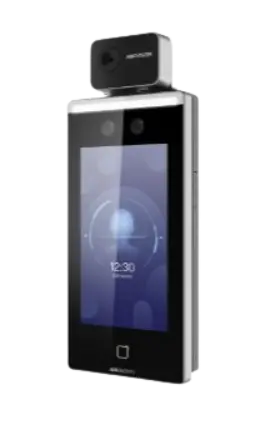

Hikvision DS-K1TA70MI-T

Another one of our thermal solutions is a facial recognition terminal. Much similar to the Hikvision ISD-SMG318LT-F the device can also check the temperature of every individual entering the premises however, unlike the Hikvision ISD-SMG318LT-F it primarily focuses on thermal and biometrics. The Hikvision DS-K1TA70MI-T functions as a temperature scanner and also biometrics great for business and schools looking to upgrade their attendance record keeping.


  • Temperature measuring range: 30 °C to 45 °C (86 °F to 113 °F), accuracy: 0.1 ° C, deviation: ± 0.5 °C
  • Recognition distance: 0.3 to 1.8 m
  • Face mask detection
  • Displays temperature measurement results on the authentication page
  • 7-inch LCD touch screen,2 Mega pixel wide-angle lens Built-in Mifare card reading module
  • Face recognition duration ＜ 0.2 s/User face recognition accuracy rate ≥ 99%
  • 6000 face capacity, 6000 card capacity, and 100,000 event capacity

Data Sheet

Specification


Temperature measurement​

Temperature range

30 °C to 45 °C (86 °F to 113 °F)

Sensor

Vanadium Oxide uncooled sensor

Resolution

120 x 160

Frame rate

25 fps

Measurement accuracy

0.1 °C

Measurement deviation

± 0.5 °C

Measuring distance

0.3 to 1.8 m

Display

Size

7-inch

Type

Touch Screen

Video

FOV

HFOV= 46°; VFOV= 87°

Pixel

2 MP

Lens

Dual-lens

Network

Wired network

Support, 10/100/1000 Mbps self-adaptive

Interface

Network interface

1

RS-485

1

Wiegand

1

Lock output

1

Exit button

1

Door contact input

1

IO input

IO output

TAMPER

1

Capacity

Card capacity

6000

Face capacity

6000

Event capacity

100,000

Authentication

Card Type

Mifare 1 card

Card reading distance

0 to 5 cm

Card reading duration

1 s

Face recognition duration

0.2 s per person

Face recognition distance

0.3 to 1.8 m

Function

Face anti-spoofing

Support

Live view

Support

Audio prompt

Support

General

Power supply

12 VDC/2 A
