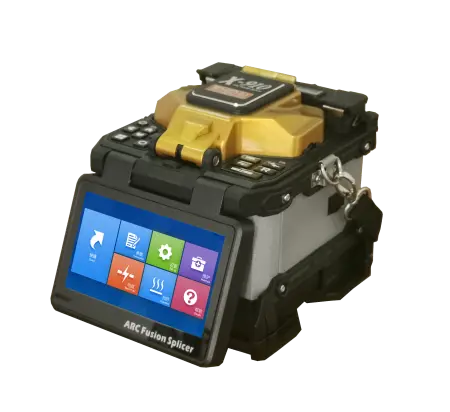

X910
High Performance Fiber Fusion Splicer
- 6 motors accurate core alignment
- Identifying fiber types automatically
- Mirrorless design, easy to maintain
- Upgraded CPU with 30% power saving
- 6 seconds typical splicing and 16 seconds heating
- Automatic & real-time ARC & fiber position calibration
- Industrial design, anti-shock, anti-dust & waterproof
- Real-time heating temperature monitoring
- Suitable for bare fiber, patch cords, drop cable etc.
Details
Inductive heater
Pluggable battery
Precise V-groove desgin
Metal holder clamp
Ceramic hammer
Fine workmanship
Characteristics
World-class Splicing and Heating Time
We pay attention to every part of the splicers, sourcing high quality components to make sure the machines reach the best performance.
High Resolution Optics
Superior quality fiber images
High-precision V-groove
Aluminum alloy structure
Motor from reliable source
Stable output power
Industrial microchip
Fast & stable performance
Toolbox Dimensions
53CM x 30CM x 27CM
Machine Dimensions
156MM x 141MM x 156MM
|
Alignment method |
6 motors core to core alignment
|
|
Applicable fiber |
SM(G.652)，MM(G.651)，DS(G.653)，NZDS(G.655), BIF(G.657) |
|
Cladding diameter |
80 -150μm
|
|
Coating diameter |
160–1000μm
|
|
Cleaved length |
5-16mm ( coating diameter ＜ 250um), 16mm |
|
Typical splice loss |
SM: 0.02dB；MM: 0.01dB；DS: 0.04dB；NZDS: 0.04dB |
|
Return loss |
＞60dB |
|
Splicing program |
40 groups |
|
Operation mode |
Manual/ Automatic |
|
Auto- heating |
Available |
|
Typical splice time |
6 seconds |
|
Typical heating time |
18 seconds for 60mm and 40mm shrinkable sleeves
|
|
Fiber magnification |
250X(X or Y view), 125X(X and Y view)
|
|
|
Viewing display |
Dual high sensitivity camera, 5 inch 800*480 LCD Monitor |
|
|
Data storage |
4000 groups data records |
|
|
Loss evaluation |
Available |
|
|
Tension test |
|
|
|
Interface |
|
|
|
Battery capacity |
5200mAh Li-battery, 300 cycles splicing and heating |
|
|
Power supply |
Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V
|
|
|
Electrode life |
More than 4000 ARC discharges, easy to replace |
|
|
Terminals |
USB 2.0 port, for software upgrading, records exporting
|
|
|
Operating condition |
Humidity:0-95%,Temperature:-10℃～+50℃;Wind:max15m/s
|
|
|
Dimension/Weight |
156mm (L)×141mm (W)×156mm (H) /2.45kg (including battery) |
Accessories in the box
- Fiber cleaver
- Fiber stripper
- Spare electrodes
- Drop cable stripper
- Power adapter & Cord
- User manual in USB stick
- Alcohol pump & soft paintbrush
