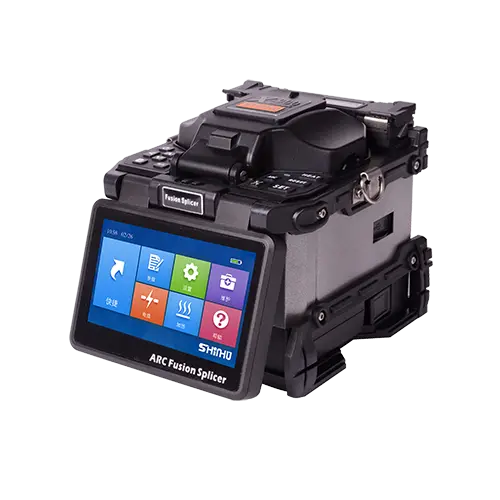

X900


Premium Fiber Fusion Splicer

  • 6 motors accurate core alignment
  • Identifying fiber types automatically
  • Upgraded CPU with 30% power saving
  • 6 seconds typical splicing and 16 seconds heating
  • Automatic & real-time ARC & fiber position calibration
  • Industrial design, anti-shock, anti-dust & waterproof
  • Real-time heating temperature monitoring
  • Suitable for bare fiber, patch cords, drop cable etc.

Get the Product Information Sheet   User M​​anual ​​

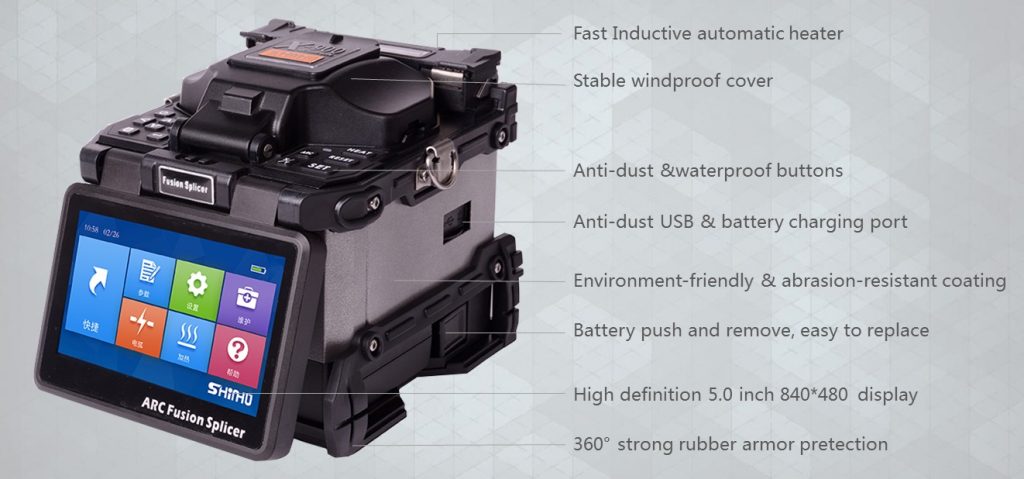

Details

Inductive heater

Pluggable battery

Precise V-groove design

Metal holder clamp

Ceramic hammer

Fine workmanship

Characteristics

World-class Splicing and Heating Time

We pay attention to every part of the splicers, sourcing high quality components to make sure the machines reach the best performance.

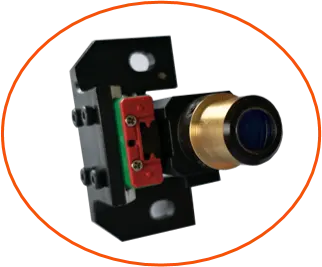

High Resolution Optics

Superior quality fiber images

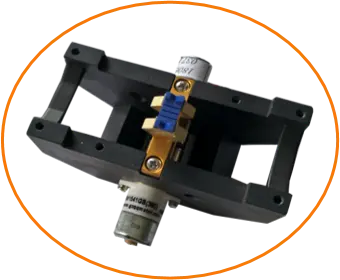

High-precision V-groove

Aluminum alloy structure

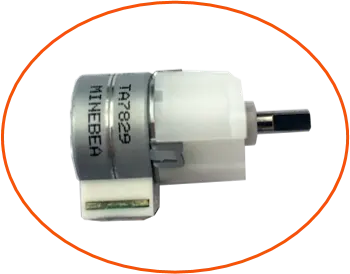

Motor from reliable source

Stable output power

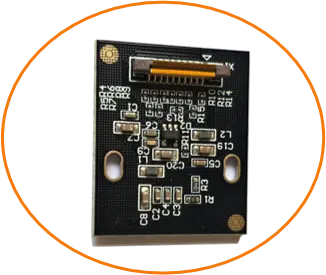

Industrial microchip

Fast & stable performance

Toolbox Dimensions

53CM x 30CM x 27CM

Machine Dimensions

156MM x 141MM x 156MM



Alignment method

6 motors core to core alignment

Applicable fiber

SM(G.652),MM(G.651),DS(G.653),NZDS(G.655), BIF(G.657)

Cladding diameter

80 -150μm

Coating diameter

160–1000μm

Cleaved length

5-16mm ( coating diameter < 250um), 16mm

Typical splice loss

SM: 0.02dB;MM: 0.01dB;DS: 0.04dB;NZDS: 0.04dB

Return loss

>60dB

Splicing program

40 groups

Operation mode

Manual/ Automatic

Auto- heating

Available

Typical splice time

6 seconds

Typical heating time

18 seconds for 60mm and 40mm shrinkable sleeves



Fiber magnification

250X(X or Y view), 125X(X and Y view)

Viewing display

Dual high sensitivity camera, 5 inch 800*480 LCD Monitor

Data storage

4000 groups data records

Loss evaluation

Available

Tension test

1.8~2.25N

Interface

GUI menu interface, easy for operation

Battery capacity

5200mAh Li-battery, 300 cycles splicing and heating

Power supply

Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V

Electrode life

More than 4000 ARC discharges, easy to replace

Terminals

USB 2.0 port, for software upgrading, records exporting

Operating condition

Humidity:0-95%,Temperature:-10℃~+50℃;Wind:max15m/s

Dimension/Weight

156mm (L)×141mm (W)×156mm (H) /2.45kg (including battery)



Accessories in the box

  • Fiber cleaver
  • Fiber stripper
  • Spare electrodes
  • Drop cable stripper
  • Power adapter & Cord
  • User manual in USB stick
  • Alcohol pump & soft paintbrush
