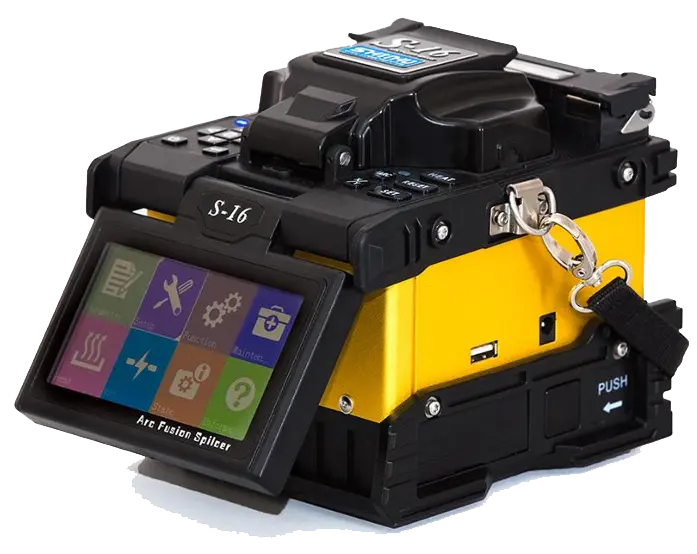

Active V-groove Fusion Splicer

  • 4 motors active v-groove accurate alignment
  • Robust all alloy construction including top cover
  • Economical and suitable for FTTx/ FTTH
  • Automatic ARC & position calibration
  • 1s boot up, 7s splicing, 26s heating
  • Stable performance, average splice loss 0.02dB
  • Inductive automatic heater, industrial CPU
  • Big capacity battery, more than 250 cycles splice & heat
  • Suitable for bare fiber, patch cords, drop cable etc.

Details

Inductive heater

Pluggable battery

Precise V-groove desgin

Metal holder clamp

Ceramic hammer

Fine workmanship


Characteristics

Best in-class Splicing and Heating Time


We pay attention to every part of the splicers, sourcing high quality components to make sure the machines reach the best performance.

High Resolution Optics

Good fiber images

High-precision V-groove

Aluminum alloy structure

Motor from reliable source

Stable output power

Industrial microchip

Fast & stable performance

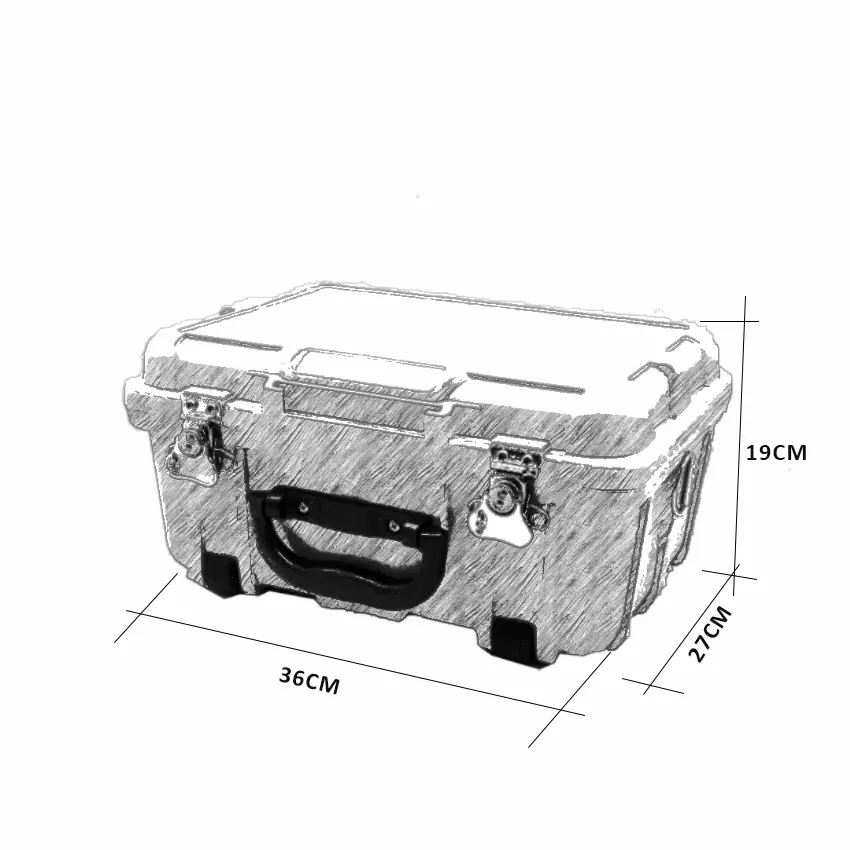

Toolbox Dimensions

36CM x 27CM x 19CM

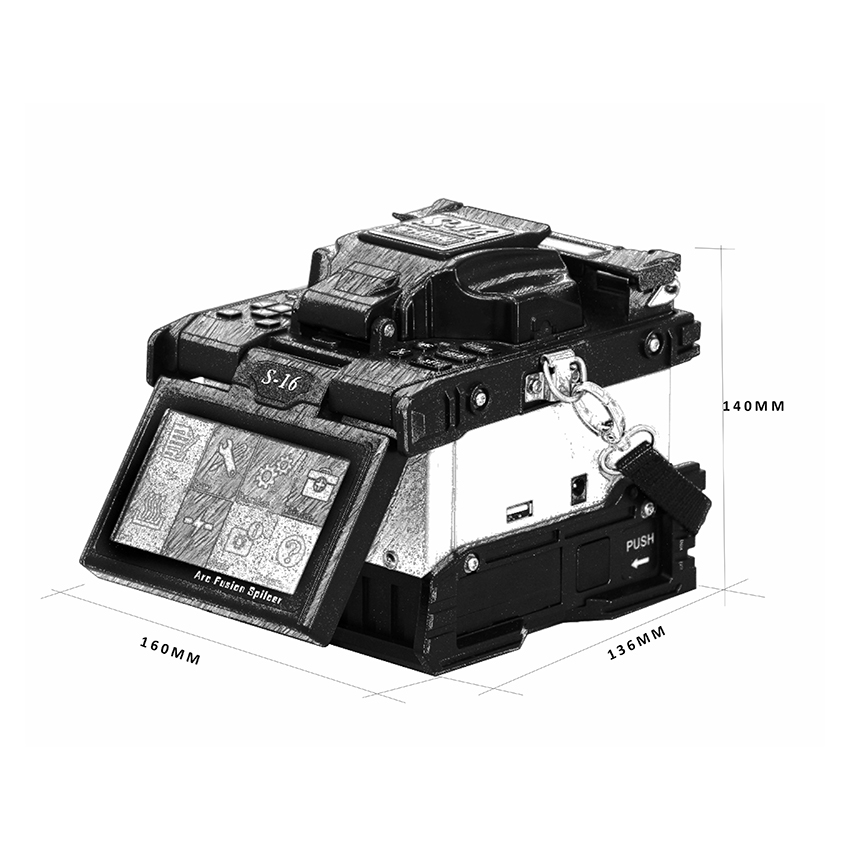

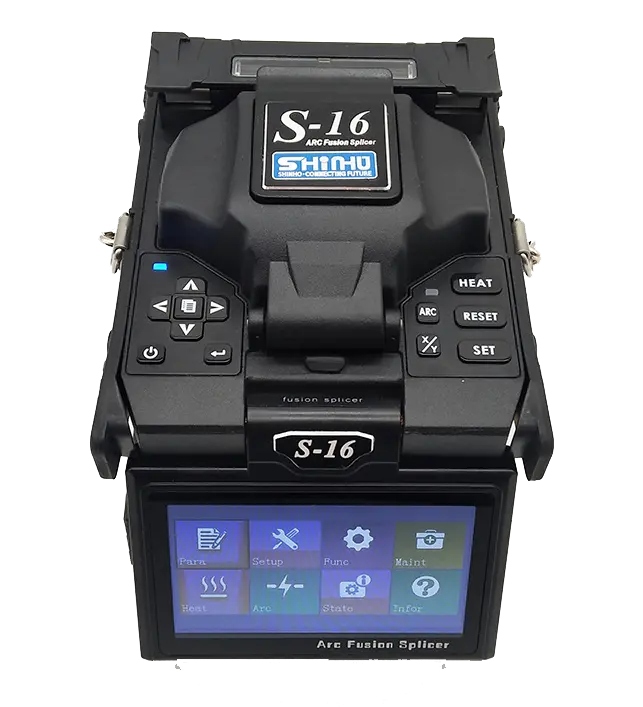

Machine Dimensions

160MM x 136MM x 140MM



Alignment method

4 motors active v-groove alignment

Applicable fiber

SM(G.652),MM(G.651),DS(G.653),NZDS(G.655) BIF G657

Cladding diameter

80 -150μm

Coating diameter

160–1000μm

Cleaved length

 5-16mm ( coating diameter < 250um), 16mm

Typical splice loss

SM: 0.02dB;MM: 0.01dB;DS: 0.04dB;NZDS: 0.04dB

Return loss

>60dB

Splicing program

40 groups

Operation mode

Manual/ Automatic

Auto- heating

Available

Typical splice time

7 seconds

Typical heating time

18 seconds for 60mm and 40mm shrinkable sleeves



Fiber magnification

250X(X or Y view), 125X(X and Y view)

Viewing display

Dual high sensitivity camera, 4.3 LCD Monitor

Data storage

4000 groups data records

Loss evaluation

Available

Tension test

1.8~2.25N

Interface

GUI menu interface, easy for operation

Battery capacity

5200mAh Li-battery, 250 cycles splicing and heating

Power supply

Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V

Electrode life

More than 4000 ARC discharges, easy to replace

Terminals

USB 2.0 port, for software upgrading, records exporting

Operating condition

Humidity:0-95%,Temperature:-10℃~+50℃;Wind:max15m/s

Dimension/Weight

160mm (L)×136mm (W)×140mm (H) /1.9kg (including battery)



Accessories in the box

  • Fiber cleaver
  • Fiber stripper
  • Spare electrodes
  • Drop cable stripper
  • Power adapter & Cord
  • User manual in USB stick
  • Alcohol pump & soft paintbrush
