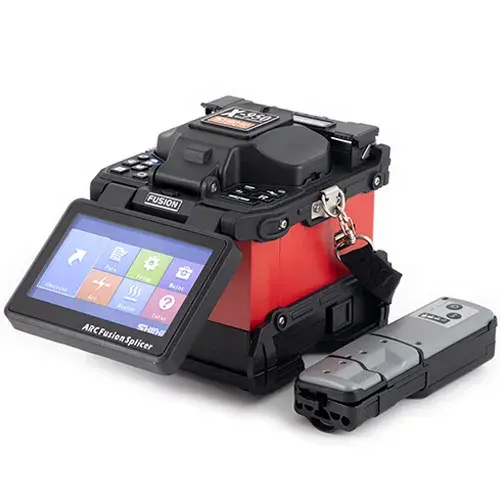

Ribbon Fiber Fusion Splicer X950A
Ribbon Fiber Fusion Splicer X950A
X950A Ribbon fiber fusion splicer is simple but powerful. It can splice single fiber upto 12 ribbon fibers. Thermal stripper and auto cleaver are included.
- Ribbon fiber fusion splicer for Single fiber and upto12 ribbon fibers
- Accurate fiber alignment, low splicing loss
- Robust industrial design, easy to operate
Features
- Applicable to single fiber and 2-12 ribbon fiber splicing
- Accurate alignment, world standard fusion loss
- 20s splicing time, heating 1-2/4-12 fiber ribbon 26s/40s
- Applicable to different types fibers (SM/MM/DS/NZDS)
- Ruggedized body, waterproof, anti-dust, anti-shock
- Pluggable Li-battery, support separate charging
- Easy to maintenance, easy to replace the electrodes
- USB port for software upgrading, records exporting
- Support 4000/100 groups fusion records/fusion images
- Comply with CE/Rohs international standard
SPECIFICATIONS
| Applicable optical fiber | SM, MM, dual cladding fiber, large diameter fiber, EDF, photonic crystal fiber, hollow fiber etc. |
| Number of fibers | Single |
| Cladding Diameter | 80~1250μm |
| Coating diameter | 160~3000μm |
| Fiber clamping | Vacuum pump assist to clamp |
| Cleaving length | 5~40mm |
| Blade life | Diamond blade, 10 positions, typical 20000 times(cladding diameter 125μm) |
| Number of modes Cleaving mode | 40 |
| Display | 5.0 inches color LCD |
| Dimensions | 270*155*165mm |
| Weight | 3.68kg |
| Power supply | Adapter, input: AC100-240V(50/60Hz); output: DC11-13.5V |
| Operation condition | 0 to 95% RH and -40 to 80℃ |
| Terminal | USB2.0 |
What is included in the X950 Kit?
