Data Center Solutions
We in RSPOT Solutions provide our clients with the ability to setup their very own data center, either be a large scale or small scale infrastructure, we have the solution for any needs.
Vivanco has been our choice of data center solutions manufacturer as they have been around since 1920, their main focus is delivering the best quality solutions in networking.

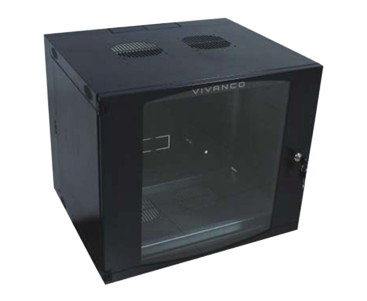

VIVANCO VA Wall Cabinet
Vivanco VA Wall Cabinets is suitable for a wide range of applications, including LAN cabling and hardware, and the housing of security, audio and video equipment. It supports up to 30kgs of networking equipment, and features a 90 degree swing out hinge for easy access to cables and connections from back side. Flat packaged for protection and ease of transport and storage with simple and quick assembly.
- Multiple cable entry options provide greater flexibility during installation
- Doors are removable for a stable mounting structure
- Adaptable for use in network, security and audio/video installations
- Standing or wall mounting installation
- Rear hinge allows main section to swing out 90° and disconnects from cabinet for easy mounting
Raw Material | SPCC |
Cabinet Structure | Assembled frame structure |
Front Door | Tempered glass door |
Side Panel | Powder coated, side panel removable |
Maximum Static Load Capacity | 30 kgs |
19” Rail | SPCC |
Finish | Powder coated |
Color | RAL7035 White; RAL9005 Black |
Included Accessories | M6 Screws & Nuts:20sets (29U); 40sets (≥29U) M12*40 Bolts: 4pcs |
Number Rack Units | 6U, 9U, 12U, 15U |
Standard Compliance | ANSI/EIA RS-310-D IEC60297-2 DIN41494 PART1 DIN41494 PART7 |

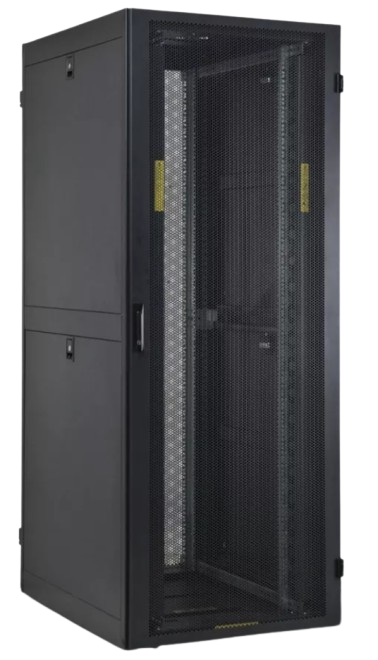

VIVANCO VE Rapid Cabinet
Vivanco VE Rapid Cabinets provide a customizable solution for datacenter build-outs, network rooms, or IT closets. The feature-rich, robust design can be shipped flat packed or as a custom-configured solution thatis fully assembled with accessories pre-installed. Vivanco VE Rapid Cabinets offer multiple size combinations, abundant accessories, and optional front and rear doors styles to meet your specific needs.
- Available in different sizes
- Available in different doors
- Fully adjustable equipment rails with RU markings
- Durable power coating in Black (RAL9005) and White (RAL7035)
- Removable and lockable half height side panels
- BrushCable entryon the top and bottom
- Adjustable levelling feet and castors are included.
- Vertical cable manager included (800mm width only)
- Over 70% ventilation rate for high density vented doors
- Ship fully assembled or flat packed
Raw Material | SPCC | ||
Cabinet Structure | Assembled frame structure | ||
Front Door Option | 1 | Tempered glass door with striped hole | |
5 | High-density single open vented door | ||
Rear Door Option | 3 | Sheet steel door | |
5 | High-density single open vented door | ||
6 | High-density double open vented door | ||
Ventilation Percentage | High density vented door | >70% | |
Side Panel | Half height, removable side panel | ||
19” Rail | Power coated, 2.0mm thick SPCC | ||
Finish | Powder coated | ||
Max. Open Angel | 180 degree | ||
Color | RAL7035 White; RAL9005 Black | ||
Maximum Static Load Capacity | 1300 kgs | ||
Included Accessories | M6 Screws & Nuts:20sets (33U); 40sets (≥33U) Heavy Duty Caster: 4pcs Adjustable Feet: 4pcs Installation Guide: 1pc Keys: 2sets | ||
Number Rack Units | 24U, 42U, 47U | ||
StandardCompliance | ANSI/EIA RS-310-D IEC60297-2 DIN41494 PART1 DIN41494 PART7 | ||
Accessories

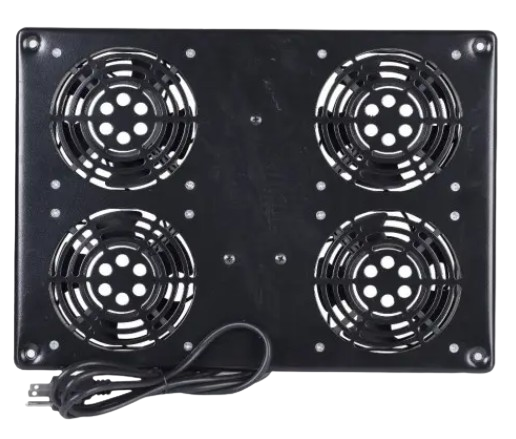

VIVANCO Top Mount Fan
VIVANCO Top Mount Universal Fan Unit fits standard 19” network and sever cabinets. It is the perfect solution for optional airflow utilization. Operates at a quiet noise level（40dBA/each fan）, making it a perfect choice for the server room or within an office space. Comes packaged with detachable power cord.
- Simple installation. Mounts easily to 19-inch network and server cabinets
- Quiet operation. Each fan is rated at only 40dBA
- Impressive airflow. Each fan is rated up to 75CFM
- Energy efficient. Each fan uses only 0.20A
Material | Powder-coated cold rolled steel |
Size | 378.1×274.1mm |
Color | RAL7035white; RAL9005black |
Compatibility | Floor Standing Cabinet |

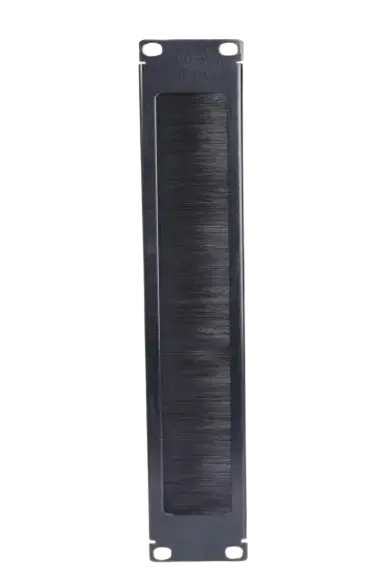

VIVANCO BRUSH CABLE MANAGER
Expand your cabinet and racks with this cable manager, available in brush type and allowing you to minimize clutter and organize your cables, based upon your individual requirements. This brush cable manager offers additional versatility and only takes up 1U.
- Material: Black powder-coated cold rolled steel
- Available in 1U size
- Mountable to standard 19”cabinets and racks
- Minimizes clutter and promotes organization based on individual needs
- Controls unwanted airflow and prevents dust from entering equipment areas
Material | Powder-coated cold rolled steel |
Size | 482.6×43.7mm |
Color | RAL7035 white; RAL9005 black |
Compatibility | AllRacks andCabinets |

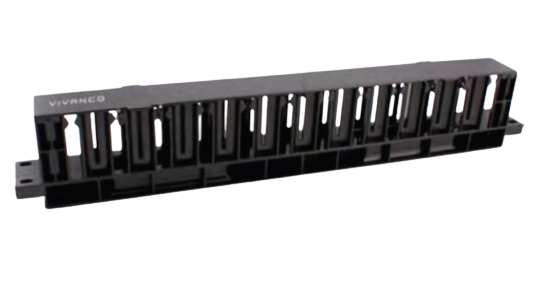

VIVANCO Horizontal Finger Duct Cable Manager
This product is designed to help organize your cables and minimize clutter within your rack or cabinet more efficiently in your cabinet or rack. Our horizontal finger duct cable manager features four cable pass-through openings in the back panel and a removable cover.
- Material: Black powder-coated cold rolled steel or plastic
- Mountable to standard 19”cabinets and racks
- Minimizes clutter and promotes organization based on individual needs
- Removable cover
Material | Powder-coated cold rolled steel or plastic |
Size | 482.6×47.8mm |
Compatibility | All Racks and Cabinets |

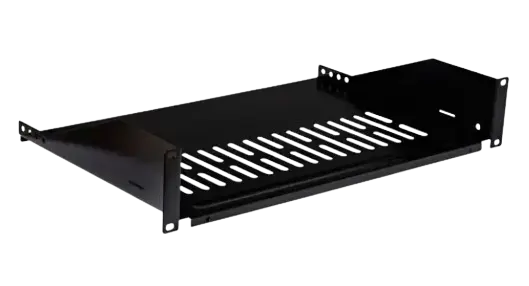

VIVANCO Cantilever Rack Shelf
The cantilever shelf offers you the ability to add functionality to your racking, while the low profile design only requires minimum 1U space.
- Material: Powder-coated cold rolled steel
- Used primarily for relay racks, but can also be used with cabinets
- Requires 1U to 3U space for mounting
- Available in multiple depths
- Vented to provide the airflow necessary to keep equipment runing cool
- Mounting hardware included
Material | Powder-coated cold rolled steel | |
Size | Width | 482.6mm |
Depth | See the details listed in Information Order | |
Height | 1U, 2U, 3U | |
Color | RAL7035 white, RAL9005 black | |
Compatibility | AllRacks and Cabinets | |
